HV40
  • Details
  • Specs
  • Download
  • Video
  • Details
  • Chat Now

網頁版詳情頁 拷贝.jpg

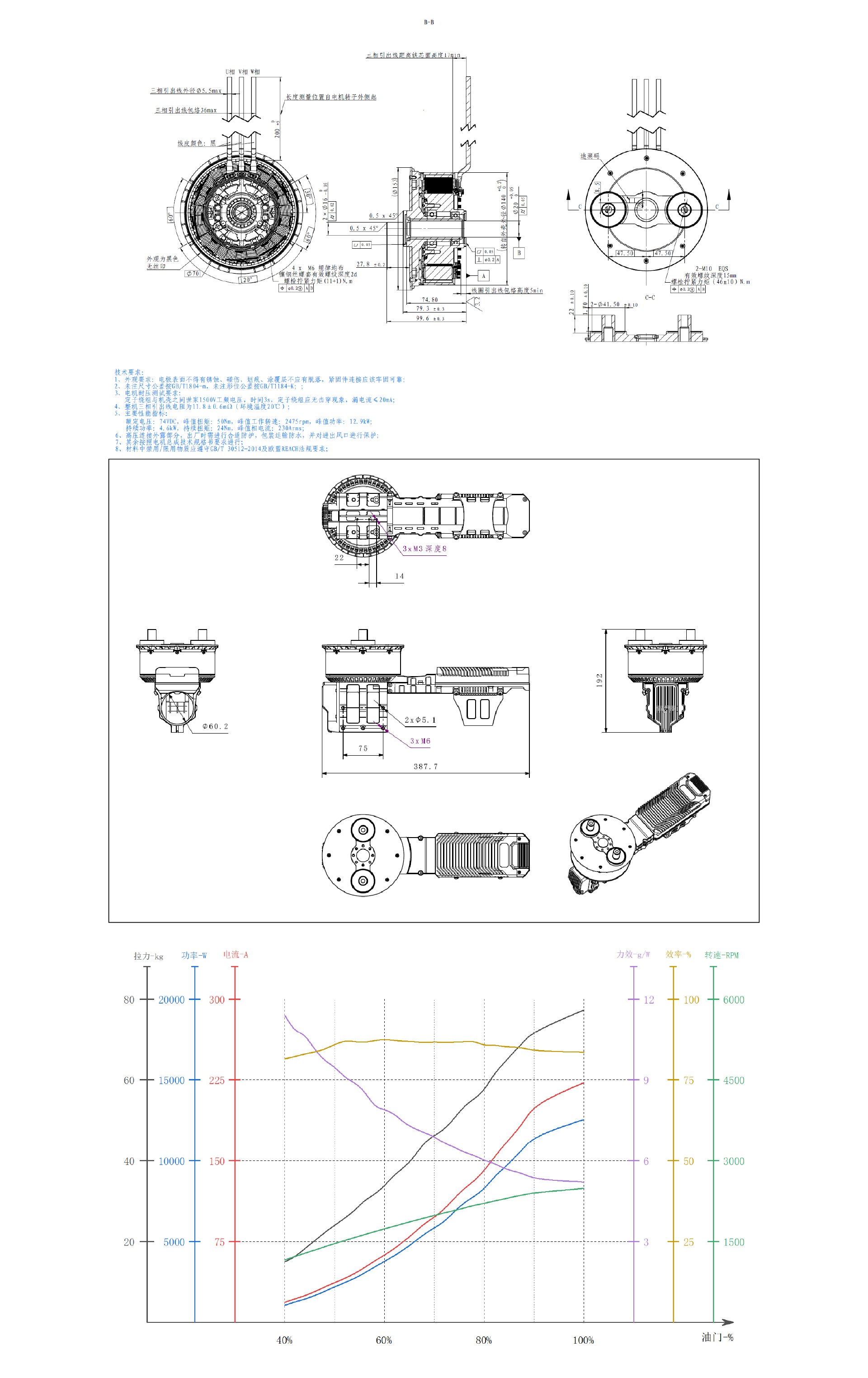

Outline Drawing
Basic Parameters
  • Max Thrust：75kg
  • Recommended Takeoff Weight：37kg
  • Recommended Battery：18S
  • Total Weight：6050g
  • Applicable carbon tube size：60mm
  • Operating Temperature：-20~40°C
  • Ingress Protection：IPX6
  • Rated Input Power：4500W
  • Max Input Power：12.5kW
  • Rated Thrust Efficiency：7.8g/w
Technical Parameters
  • PWM Input Signal Level：3.3V/5V
  • Throttle Pulse Width：1050 ~1950μs
  • Compatible Signal Frequencies：50~500 Hz
  • Max Allowable Voltage：81V
  • Continuous Current Non-hermetic Ambient Temperature≤ 60℃：65A
  • Maximum Current Non-hermetic Ambient Temperature≤ 60℃：250A（10s)
  • Communication interface：CAN
  • Overall Dimensions：153*100
  • Diameter×Thread Pitch：64*23 .0
  • Total Weight：942.95g

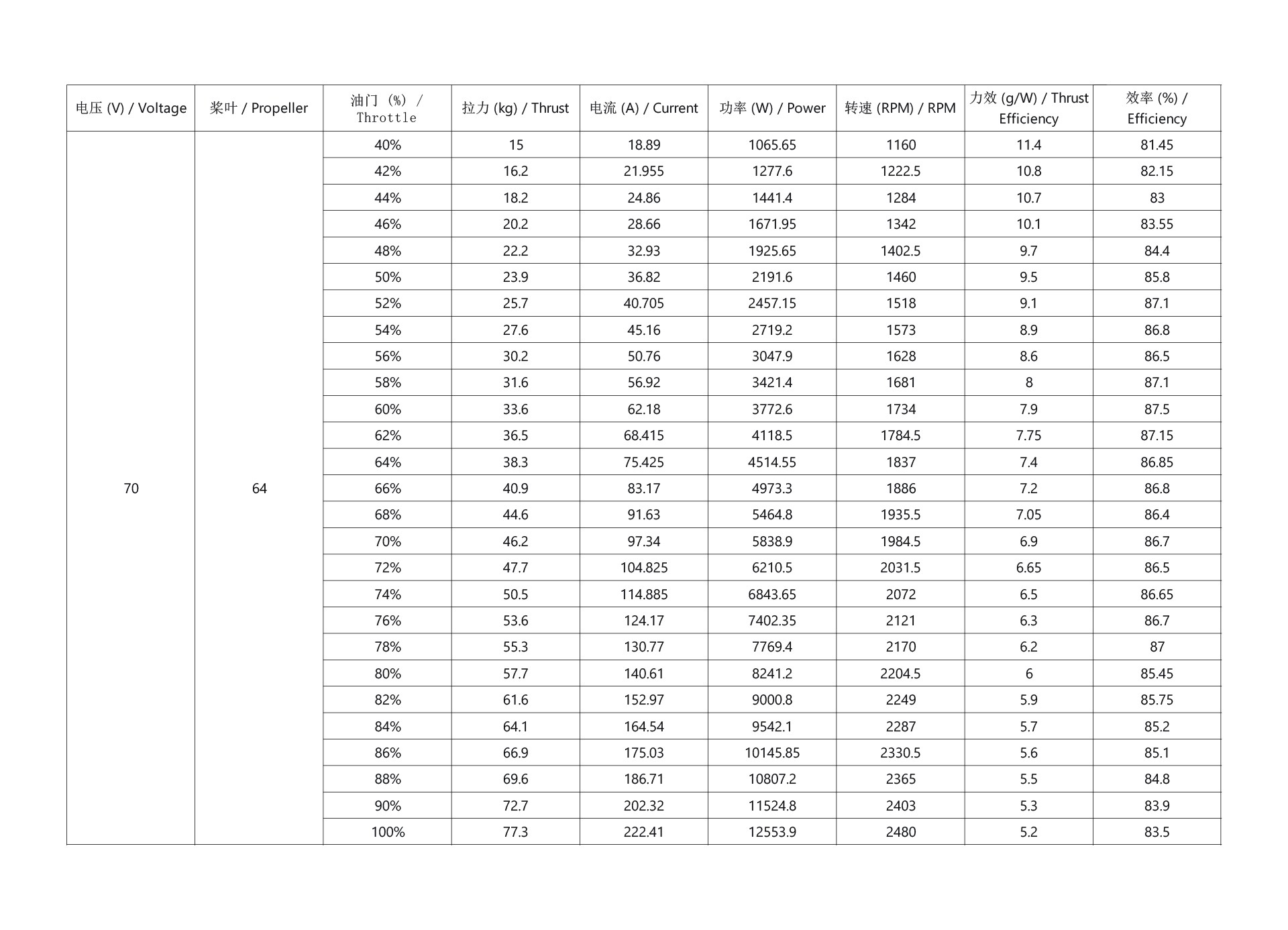

Test Data
