T8
  • Details
  • Specs
  • Download
  • Video
  • Details
  • Chat Now


网页版-详情页 拷贝.jpg

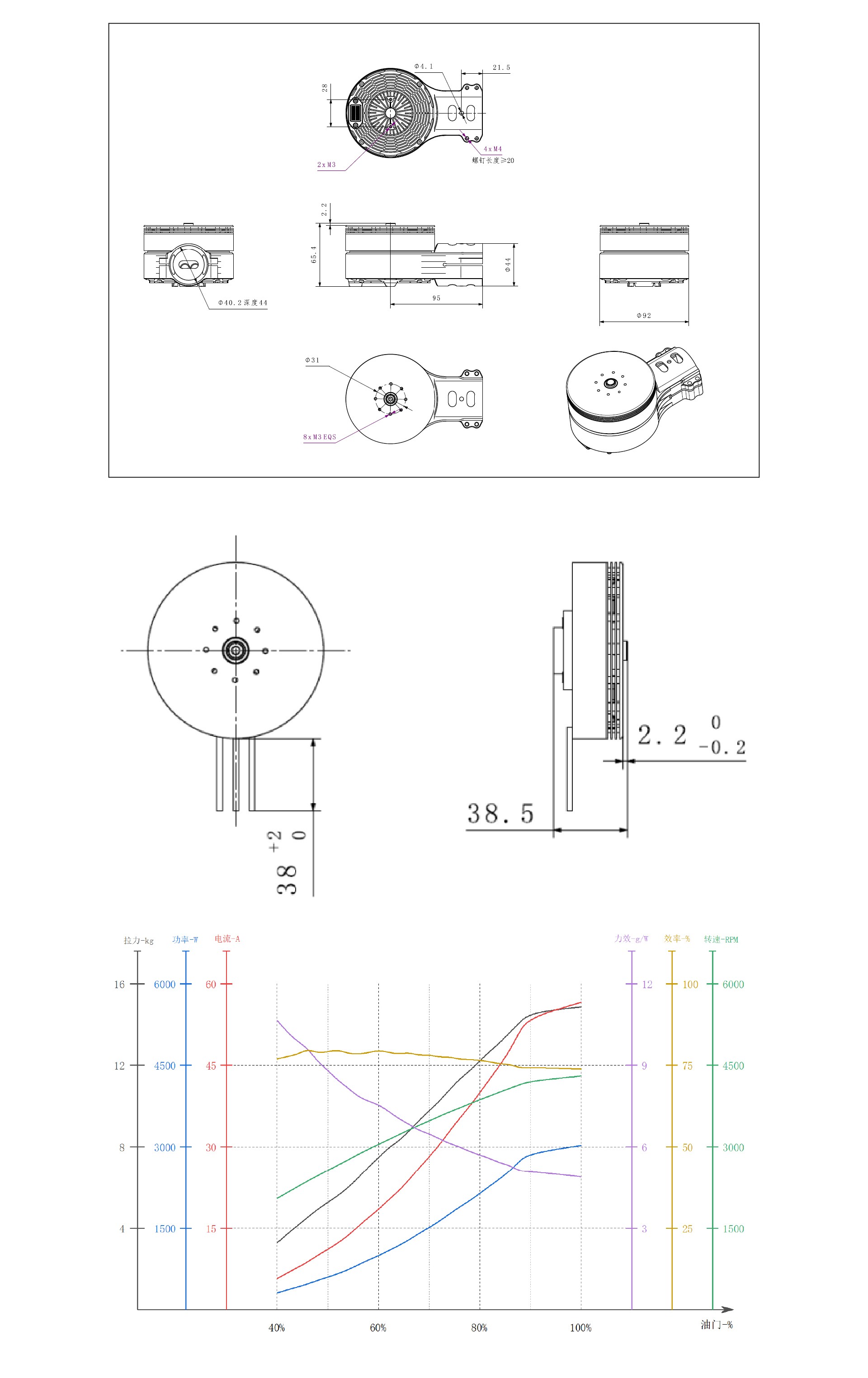

Outline Drawing
Basic Parameters
  • Max Thrust：16kg
  • Recommended Takeoff Weight：7-7.5kg
  • Recommended Battery：14S
  • Total Weight：900±10g
  • Applicable carbon tube size：40mm
  • Operating Temperature：-20~40°C
  • Ingress Protection：IPX6
  • Rated Input Power：850W
  • Max Input Power：3500W
  • Rated Thrust Efficiency：8.5g/w
Technical Parameters
  • PWM Input Signal Level：3.3V/5V
  • Throttle Pulse Width：1050 ~1950μs
  • Compatible Signal Frequencies：50~500 Hz
  • Max Allowable Voltage：63V
  • Continuous Current Non-hermetic Ambient Temperature≤ 60℃：20A
  • Maximum Current Non-hermetic Ambient Temperature≤ 60℃：120A（10s)
  • Communication interface：CAN
  • KV Rating：120KV
  • Copper Wire Size：High Temp Enameled Wire
  • Bearing：Waterproof
  • Throttle Pulse Width：1050 ~1950μs
  • Total Weight：222.62/249 .50g

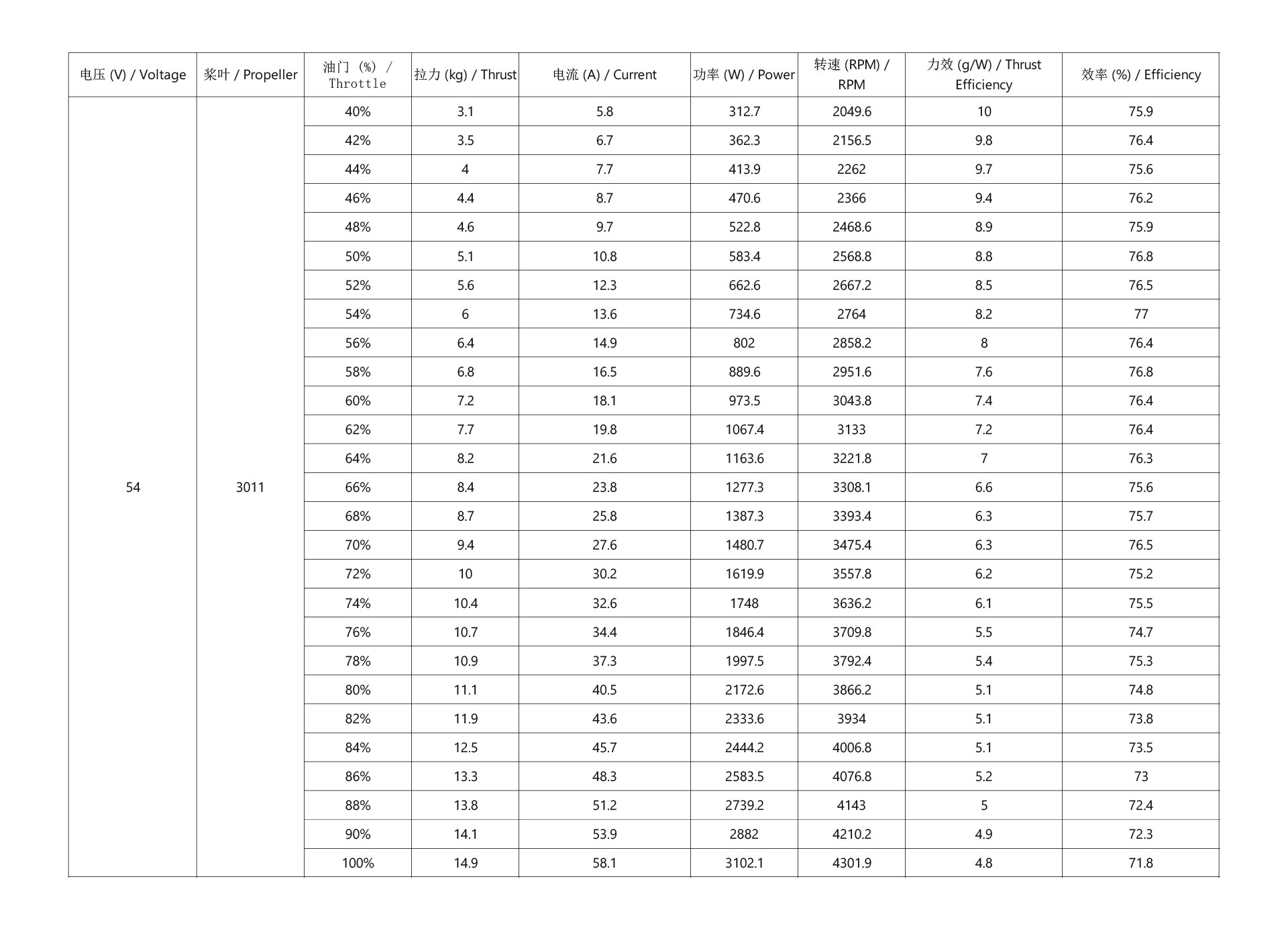

Test Data
