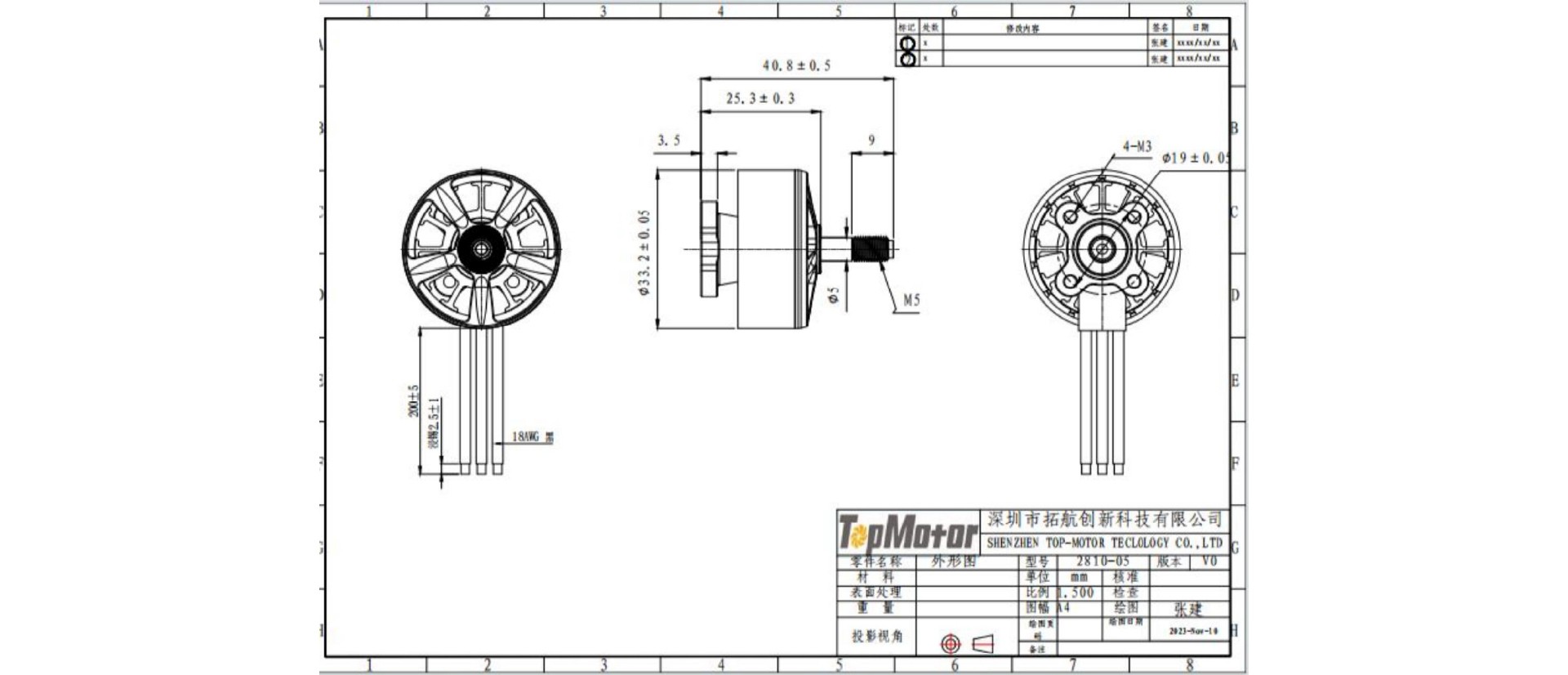

Outline Drawing
Basic Parameters
  • Model：2810
  • Motor Size：D33.2*25.3mm
  • Shaft-D：Ф5 -0/-0.02mm
  • Shaft-L：15.5±0.2mm
  • Wire Length：200±5mm
  • Weight：65.8±2g（With wire）
Technical Parameters
  • No Load Voltage：10V
  • No load Current：1.75±0.3A
  • No load Speed：12828~14175RPM（1350KV）
  • Internal resistance：44.5mΩ±5%
  • Working Voltage：4-6S（3.7-4.2V/S）
  • KV Rating：1350KV
  • Propeller：7/8inch
  • Max Thrust：3kg
  • Flight Weight：4kg

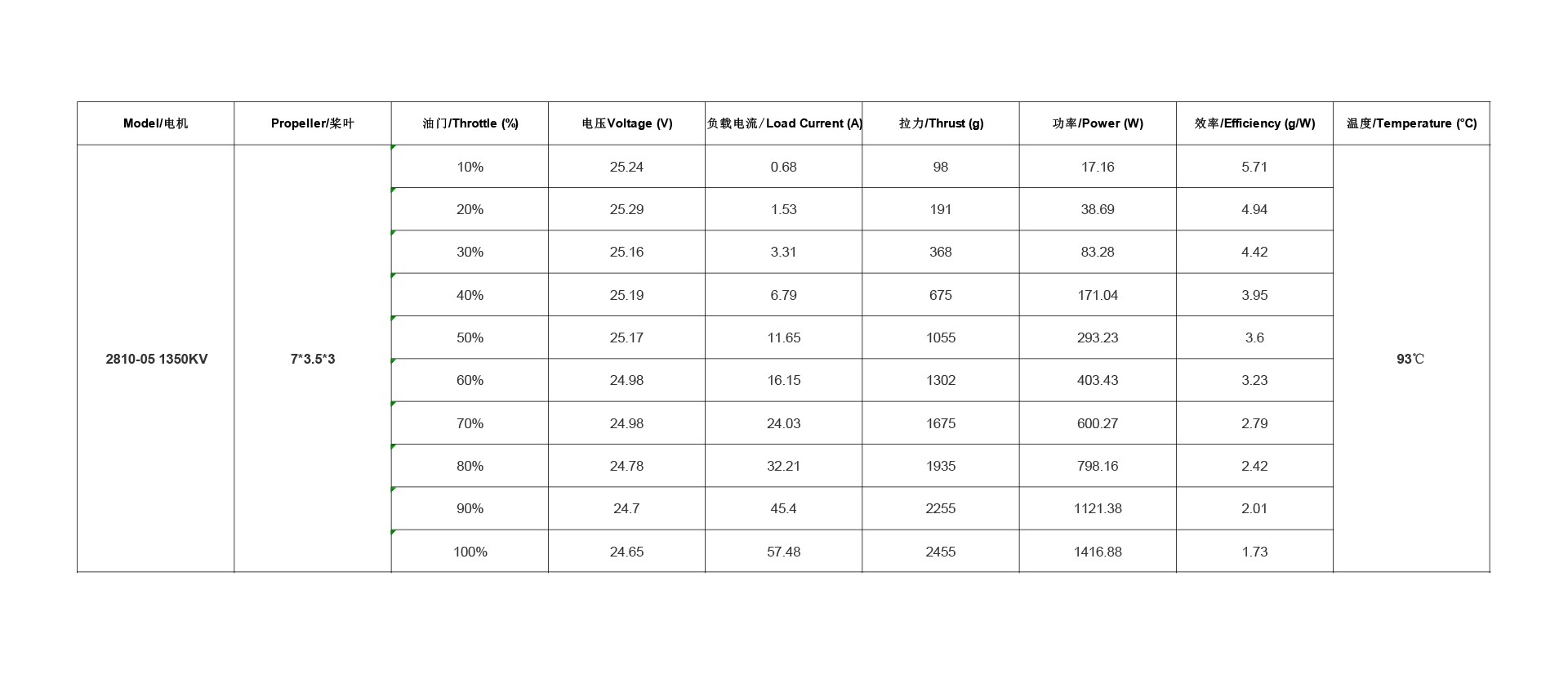

Testing Data
