4325
  • Details
  • Specs
  • Download
  • Video
  • Details
  • Chat Now

网页版详情页 拷贝.jpg

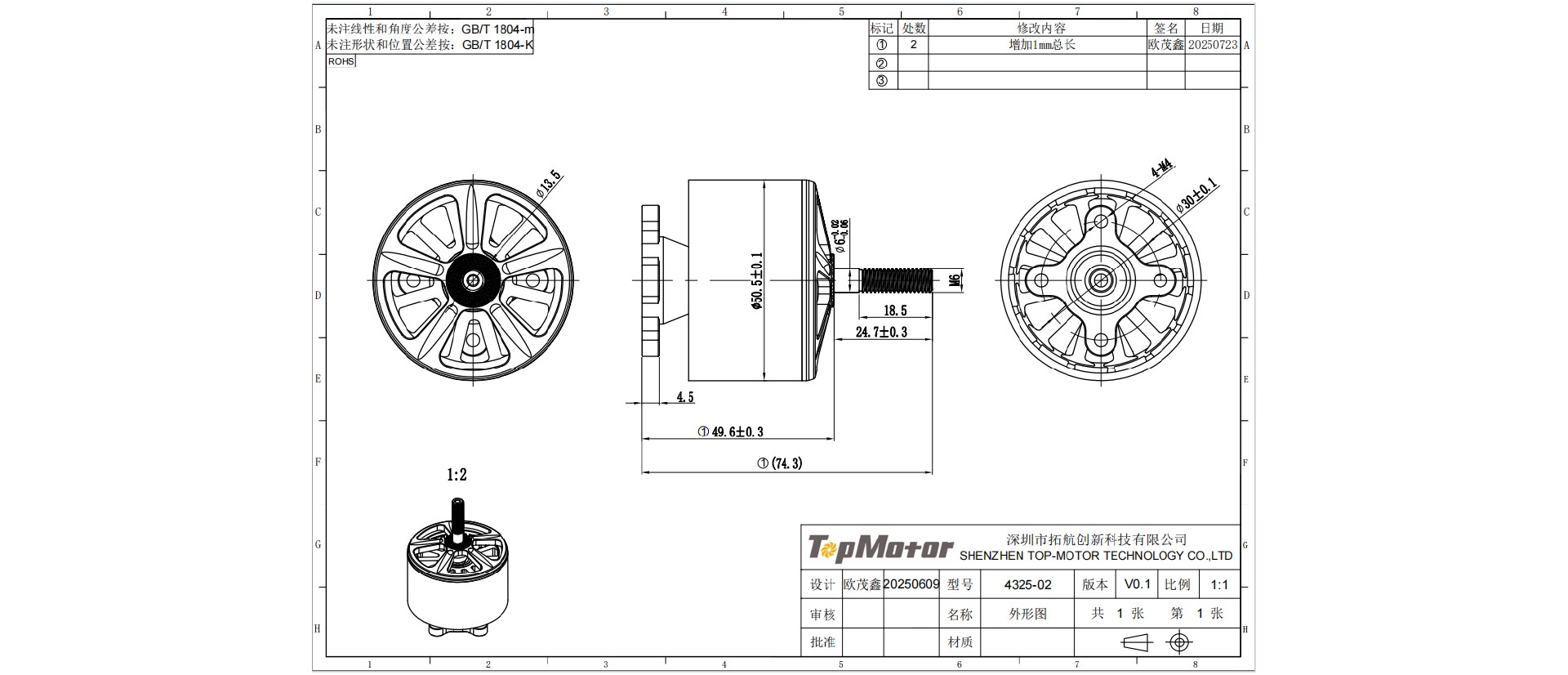

Outline Drawing
Basic Parameters
  • Model：4325
  • Motor Size：D50.5*49.6mm
  • Shaft-D：Ф6-0.02/-0.06mm
  • Shaft-L：24.7±0.3mm
  • Wire Length：250±5mm
  • Weight：34.3±10g（With wire）
Technical Parameters
  • No Load Voltage：10V
  • No load Current：1.9±0.2A
  • No load Speed：3410~3769RPM（360KV)
  • Internal resistance：31.37mΩ ±5%
  • Working Voltage：8-12S（3.7-4.2V/S）
  • KV Rating：360KV
  • Propeller：13/15inch
  • Max Thrust：9kg
  • Flight Weight：14k

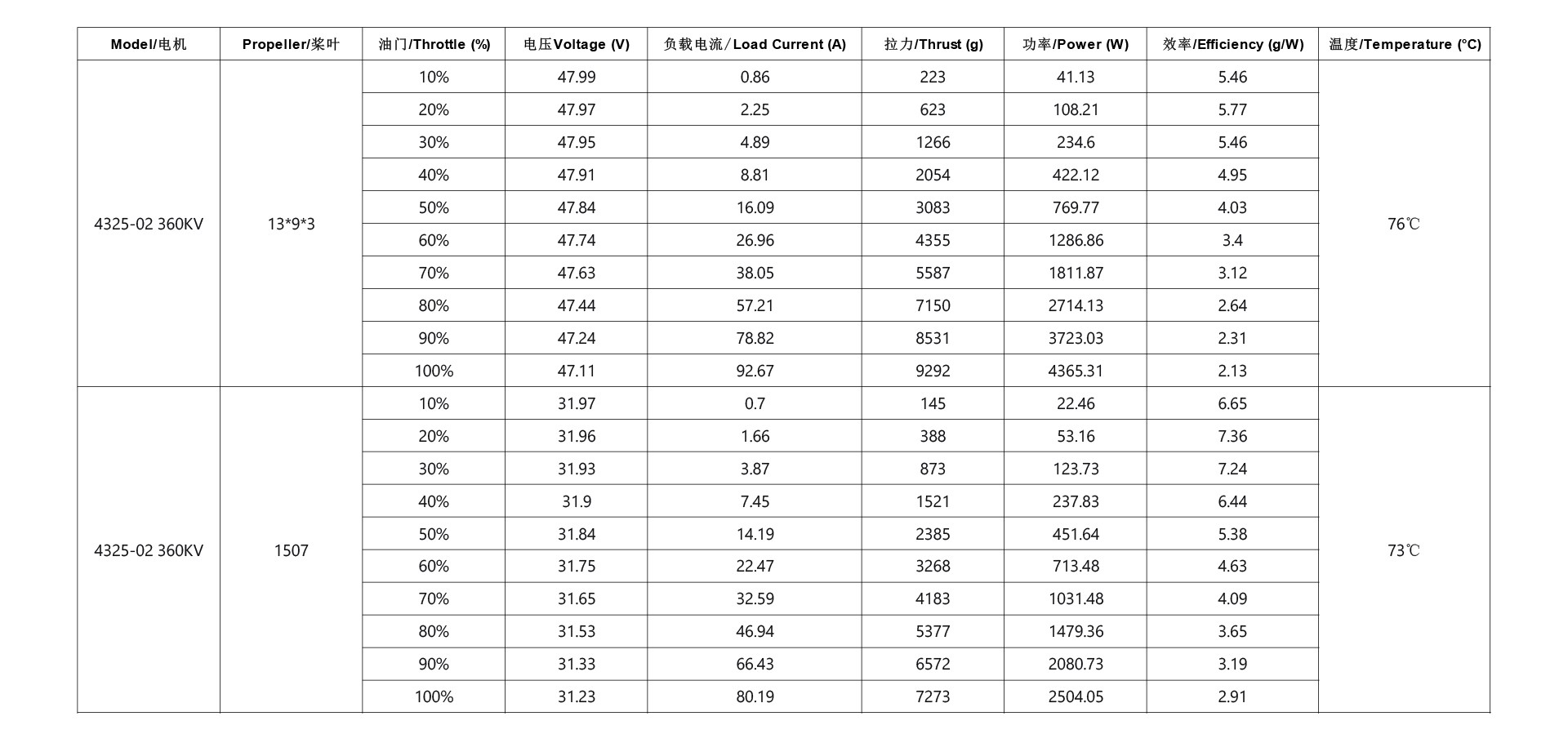

Testing Data
