4715
  • Details
  • Specs
  • Download
  • Video
  • Details
  • Chat Now

网页版详情页 拷贝.jpg

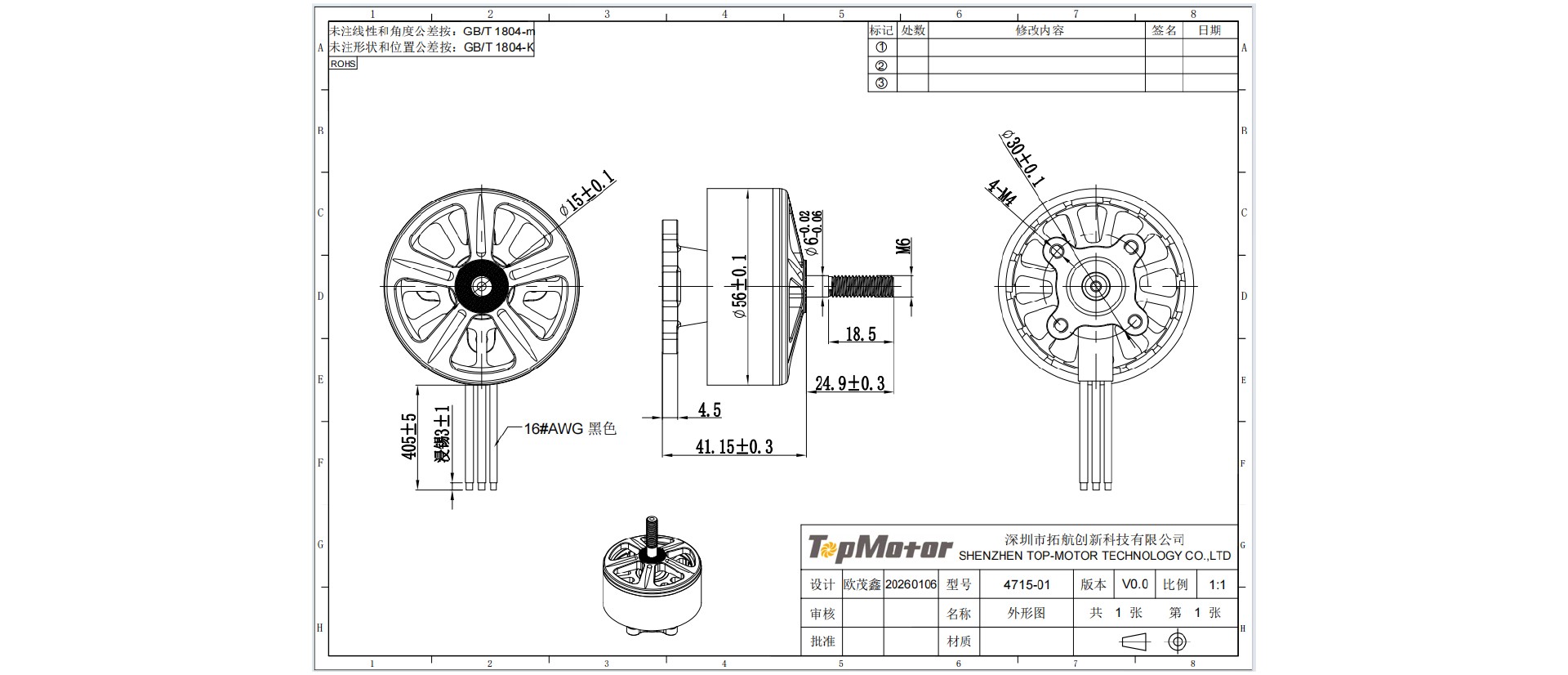

Outline Drawing
Basic Parameters
  • Model：4715
  • Motor Size：D56*41.15mm
  • Shaft-D：Ф6-0.02/-0.06mm
  • Shaft-L：24.9±0.3mm
  • Wire Length：405±5mm
  • Weight：286±12g（With wire）
Technical Parameters
  • No Load Voltage：10V
  • No load Current：1.80±0.2A
  • No load Speed：3800~4200RPM（400KV）
  • Internal resistance：40.15mΩ±5%
  • Working Voltage：8-12S（3.7-4.2V/S）
  • KV Rating：400KV
  • Propeller：13/15inch
  • Max Thrust：7.8kg
  • Flight Weight：11kg

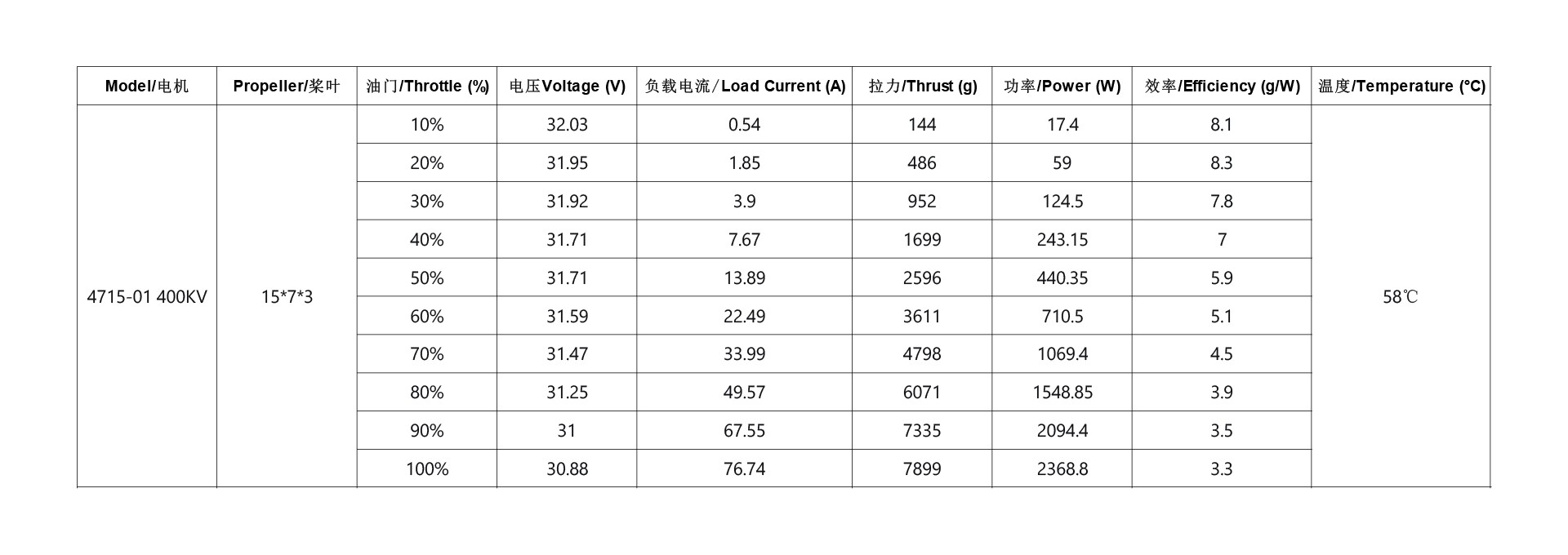

Testing Data
