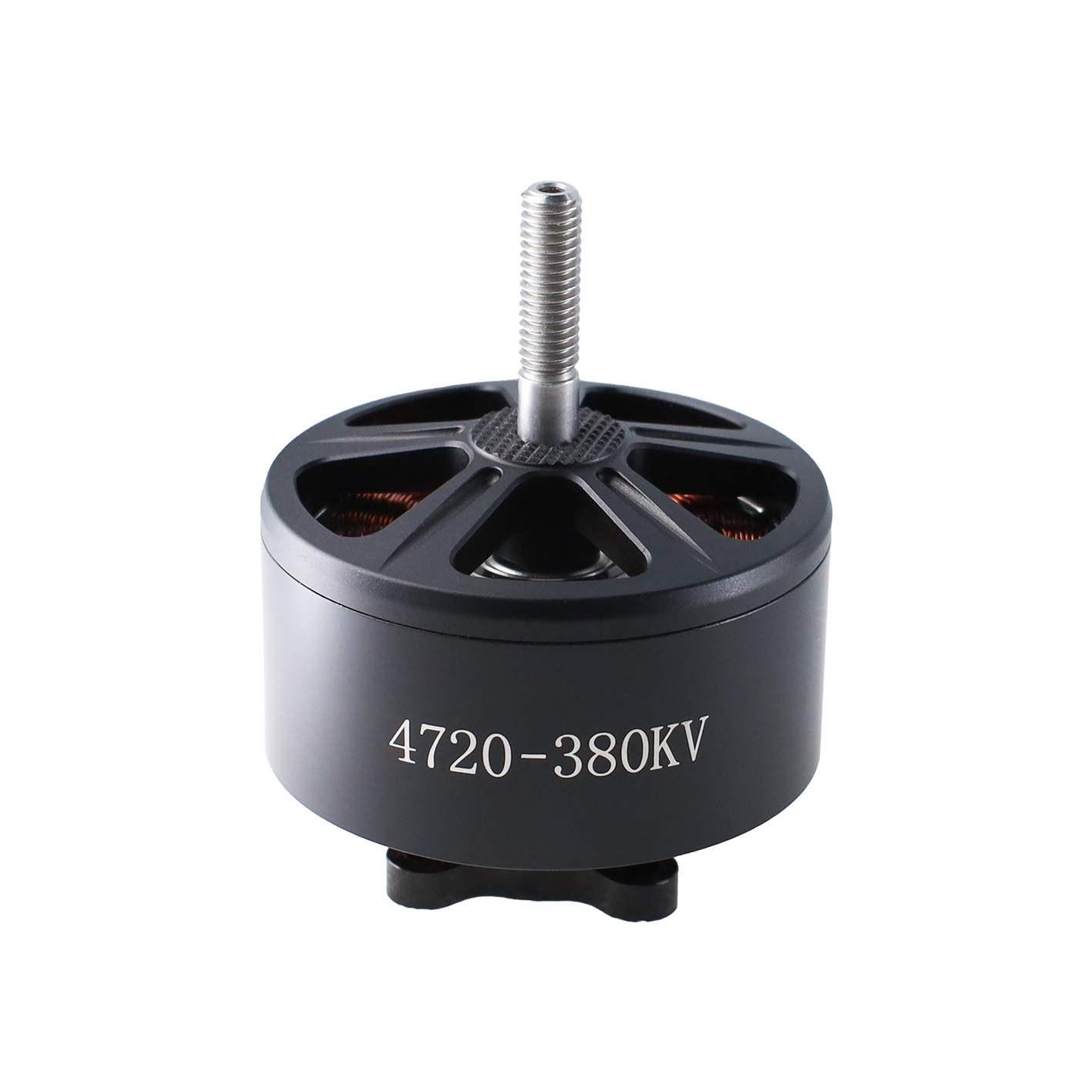

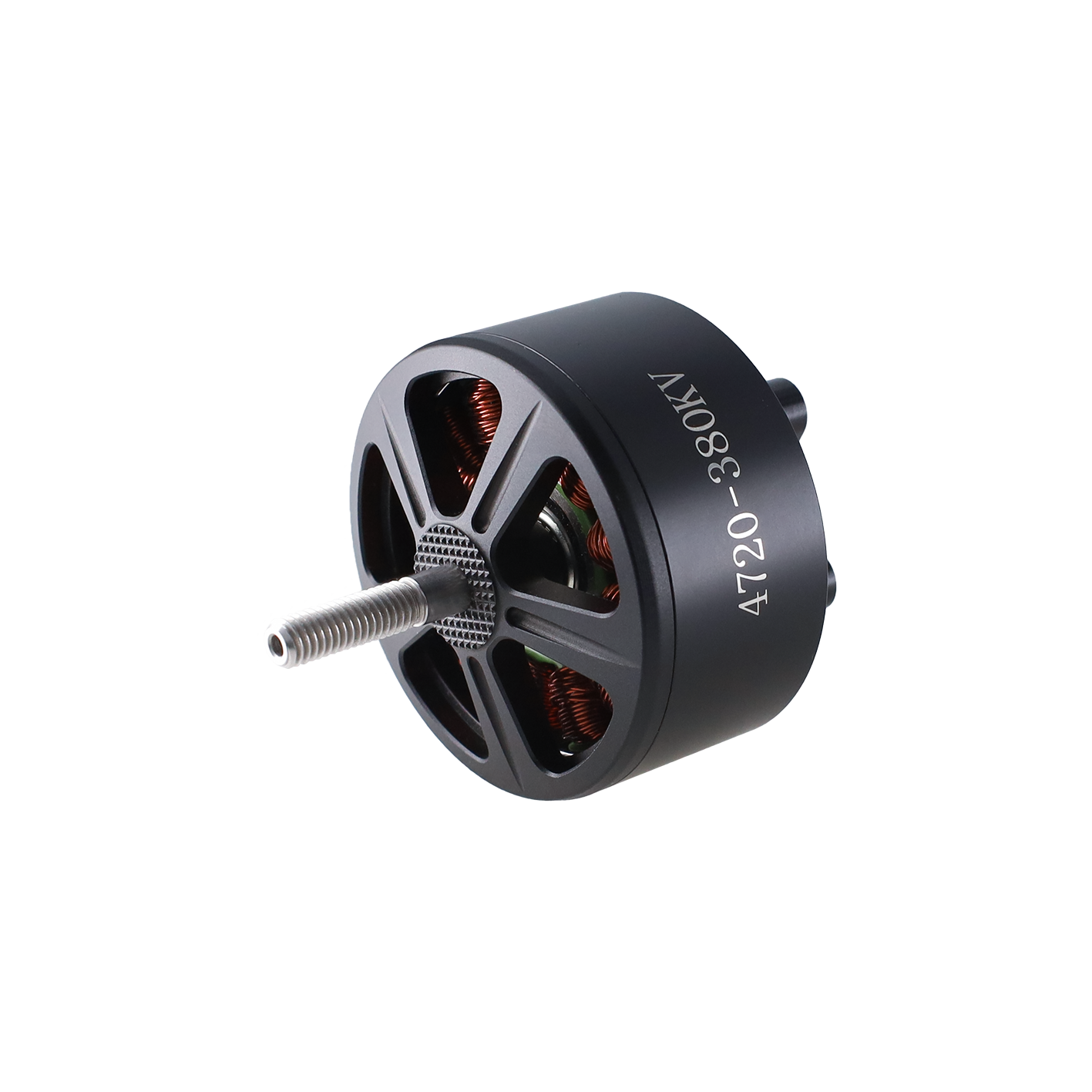

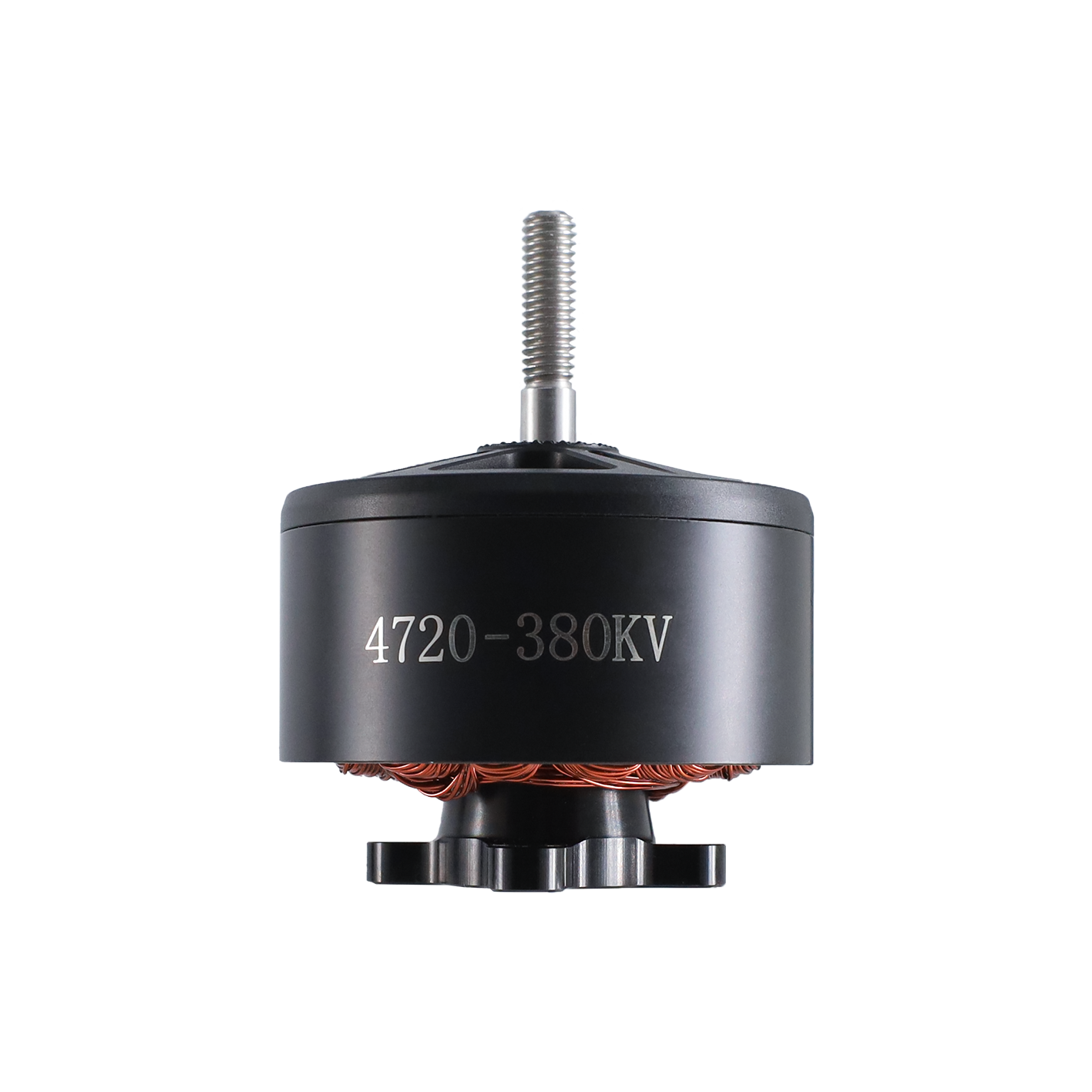

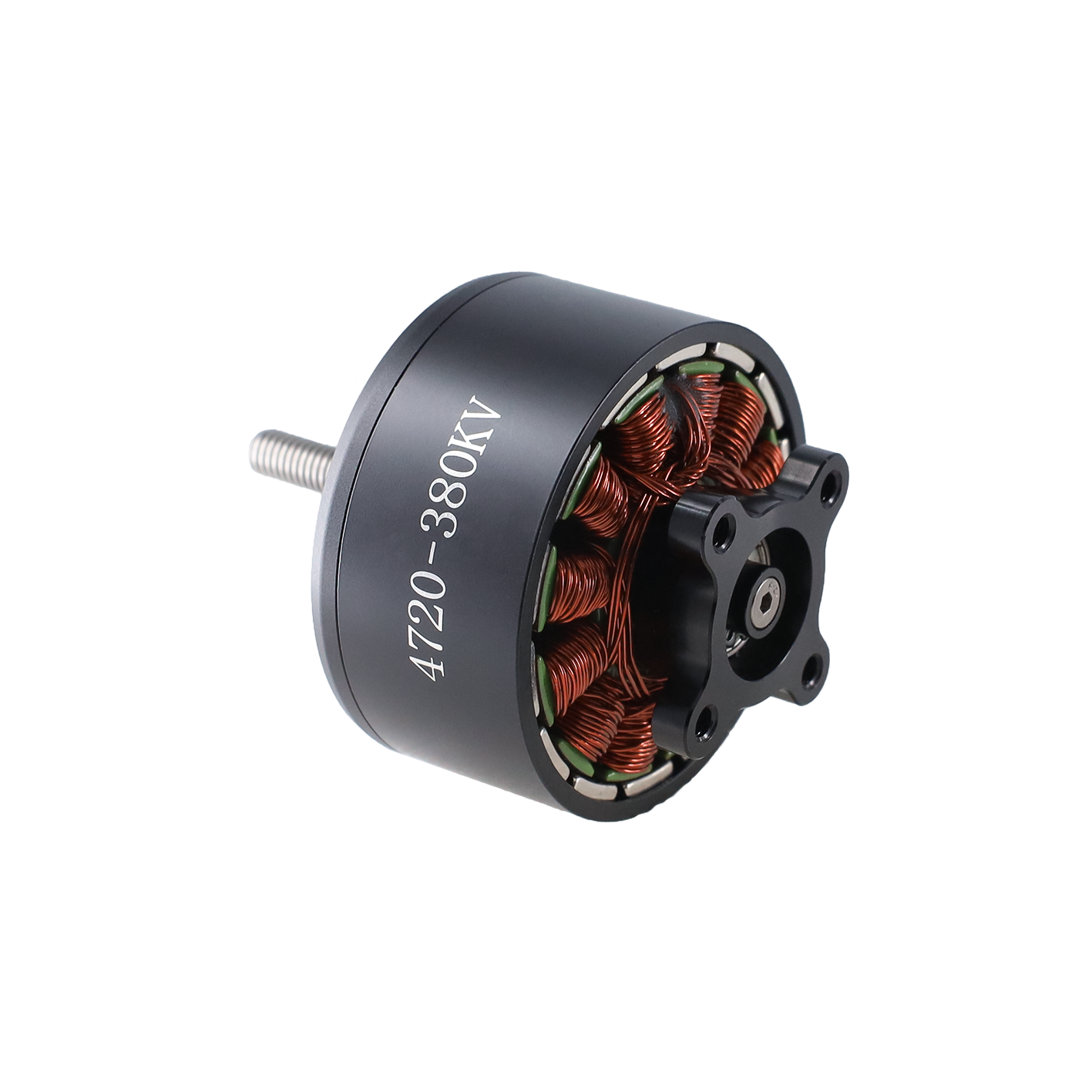

4720
  • Details
  • Specs
  • Download
  • Video
  • Details
  • Chat Now

网页版详情页 拷贝.jpg

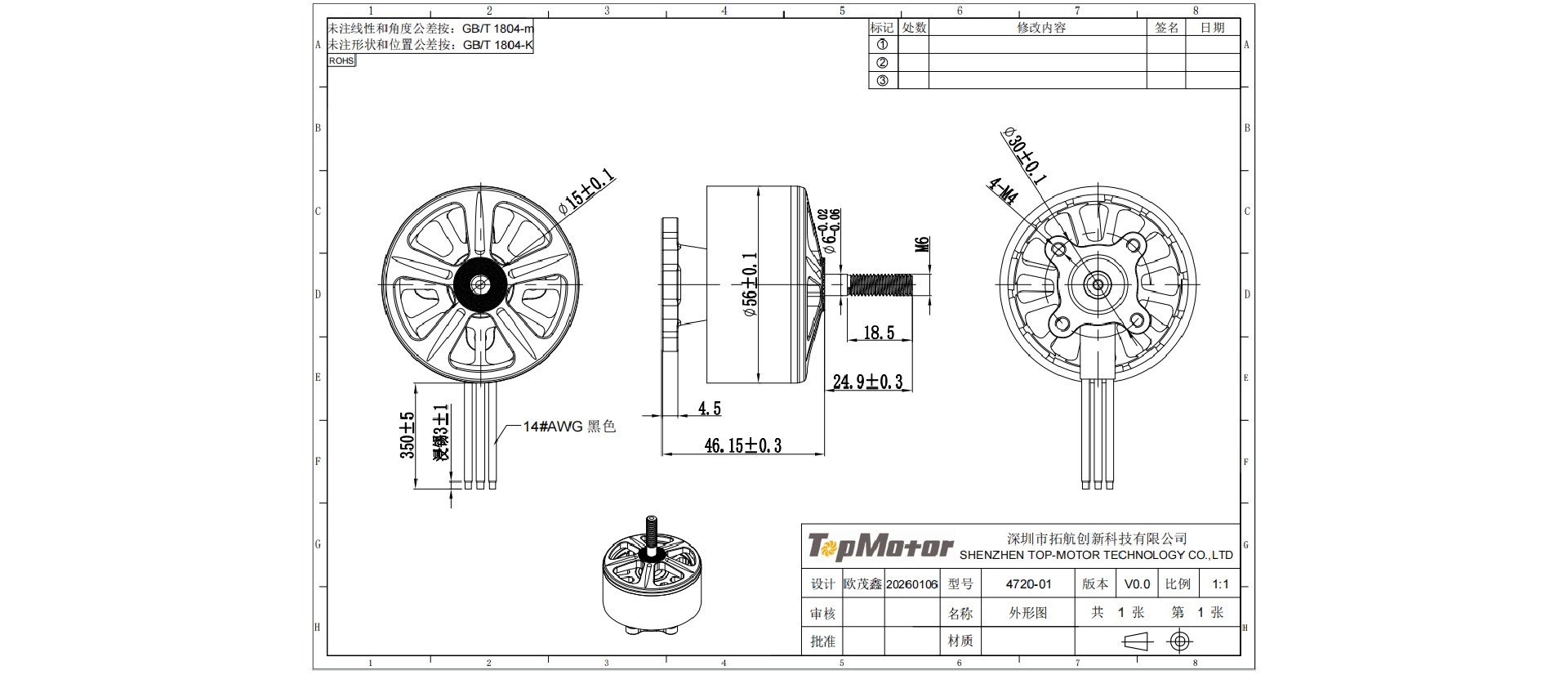

Outline Drawing
Basic Parameters
  • Model：4720
  • Motor Size：D56*46.15mm
  • Shaft-D：Ф6-0.02/-0.05mm
  • Shaft-L：24.9±0.3mm
  • Wire Length：350±5mm
  • Weight：362.7±10g（With wire）
Technical Parameters
  • No Load Voltage：20V
  • No load Current：2.82±0.2A
  • No load Speed：6612~7308RPM（435KV）
  • Internal resistance：23.62mΩ±5%
  • Working Voltage：8-12S（3.7-4.2V/S）
  • KV Rating：435KV
  • Propeller：13/15inch
  • Max Thrust：10kg
  • Flight Weight：14kg

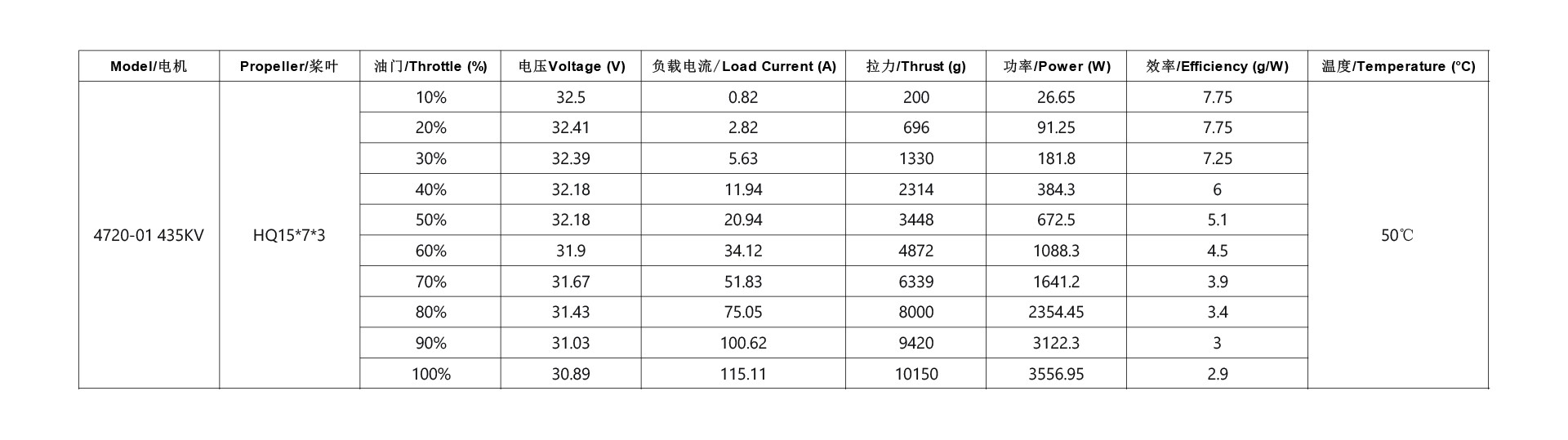

Testing Data
