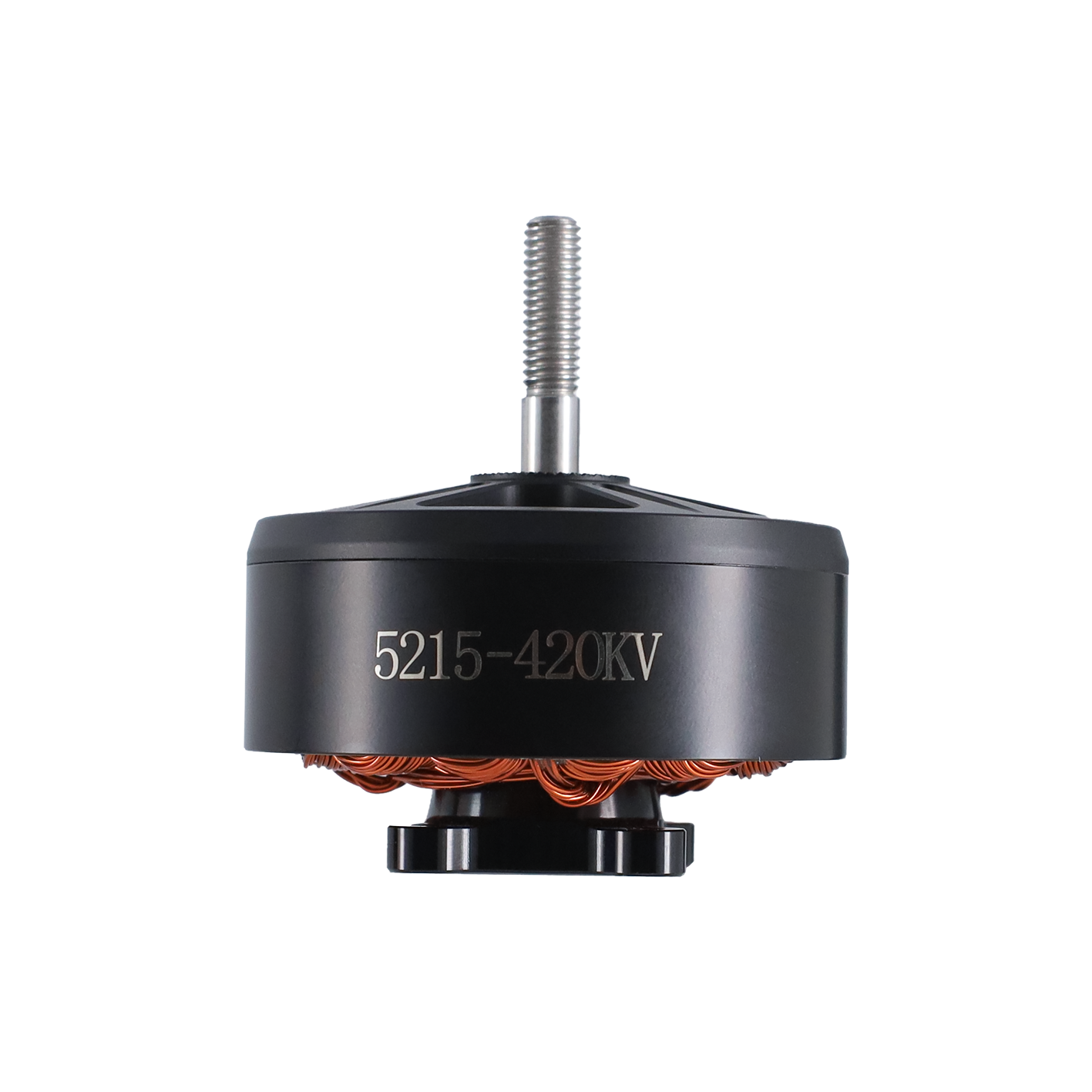

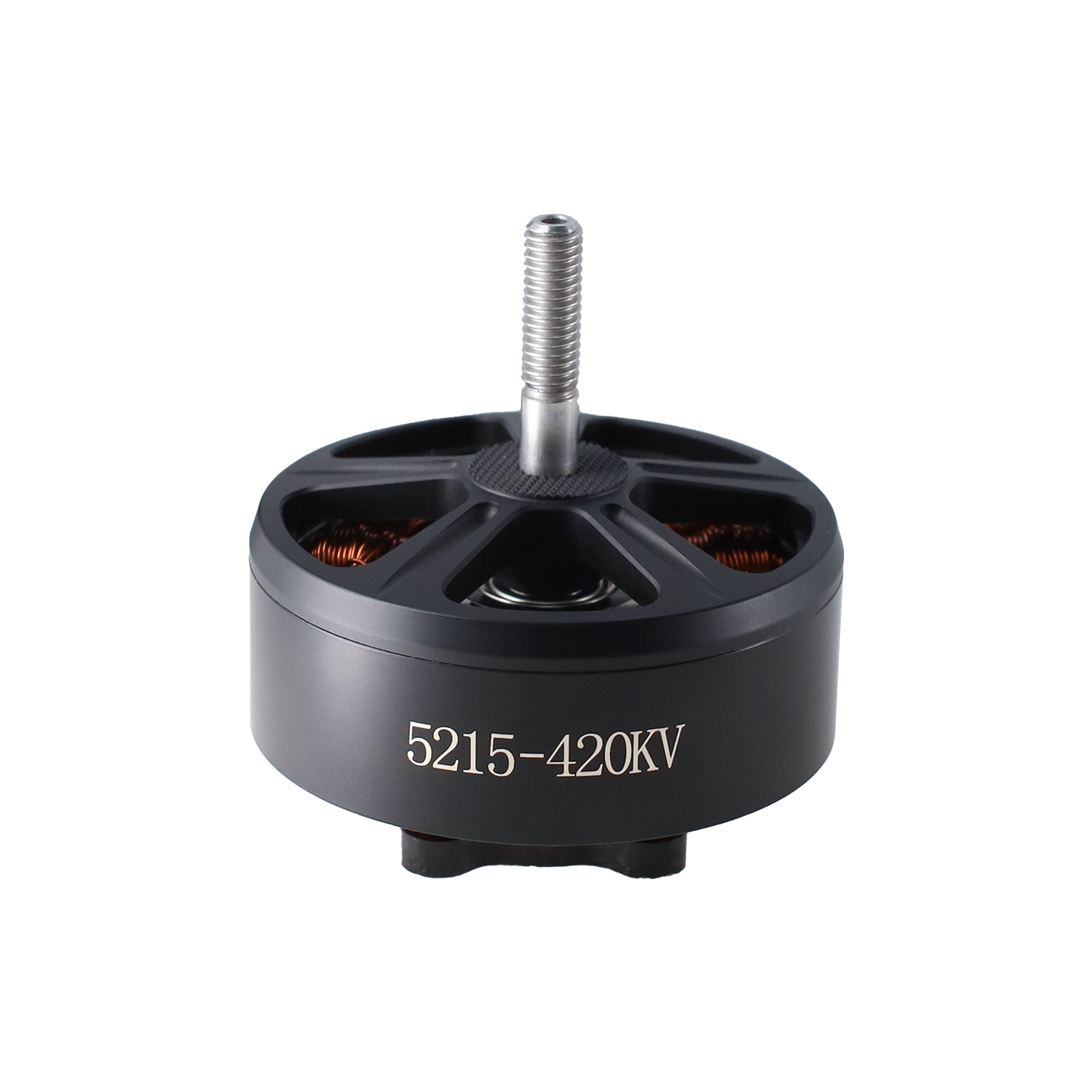

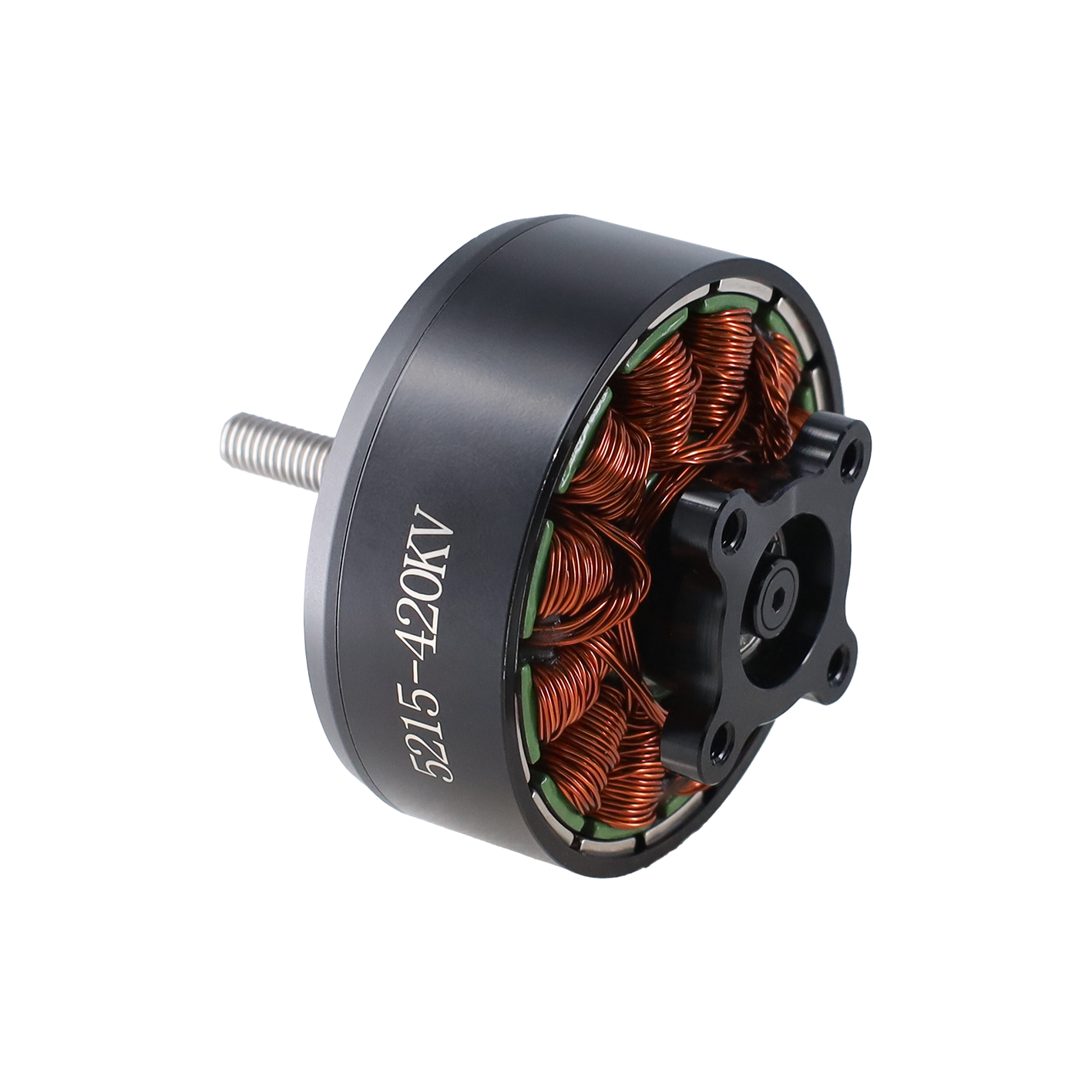

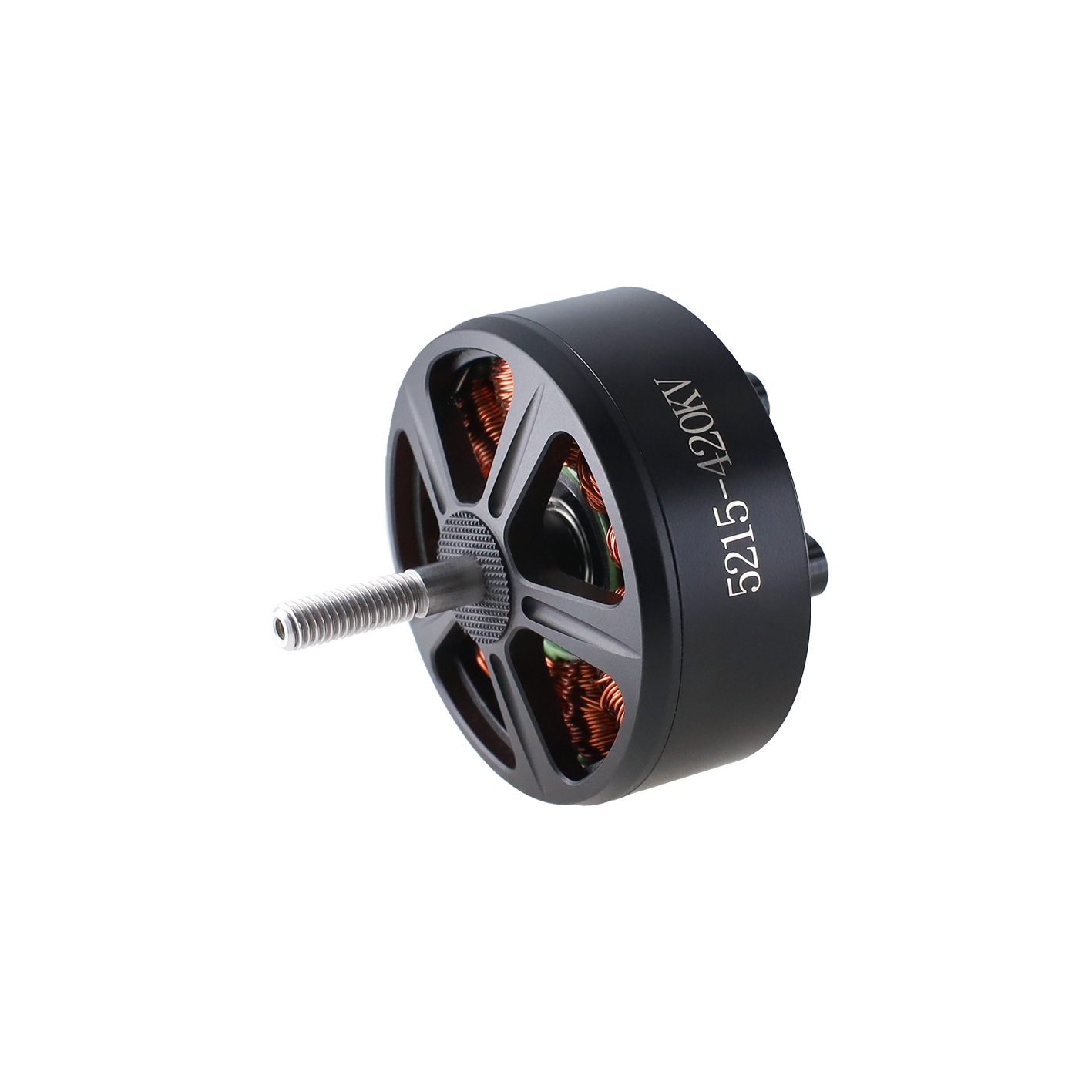

5215

Details
Specs
Download
Video
Details
Chat Now

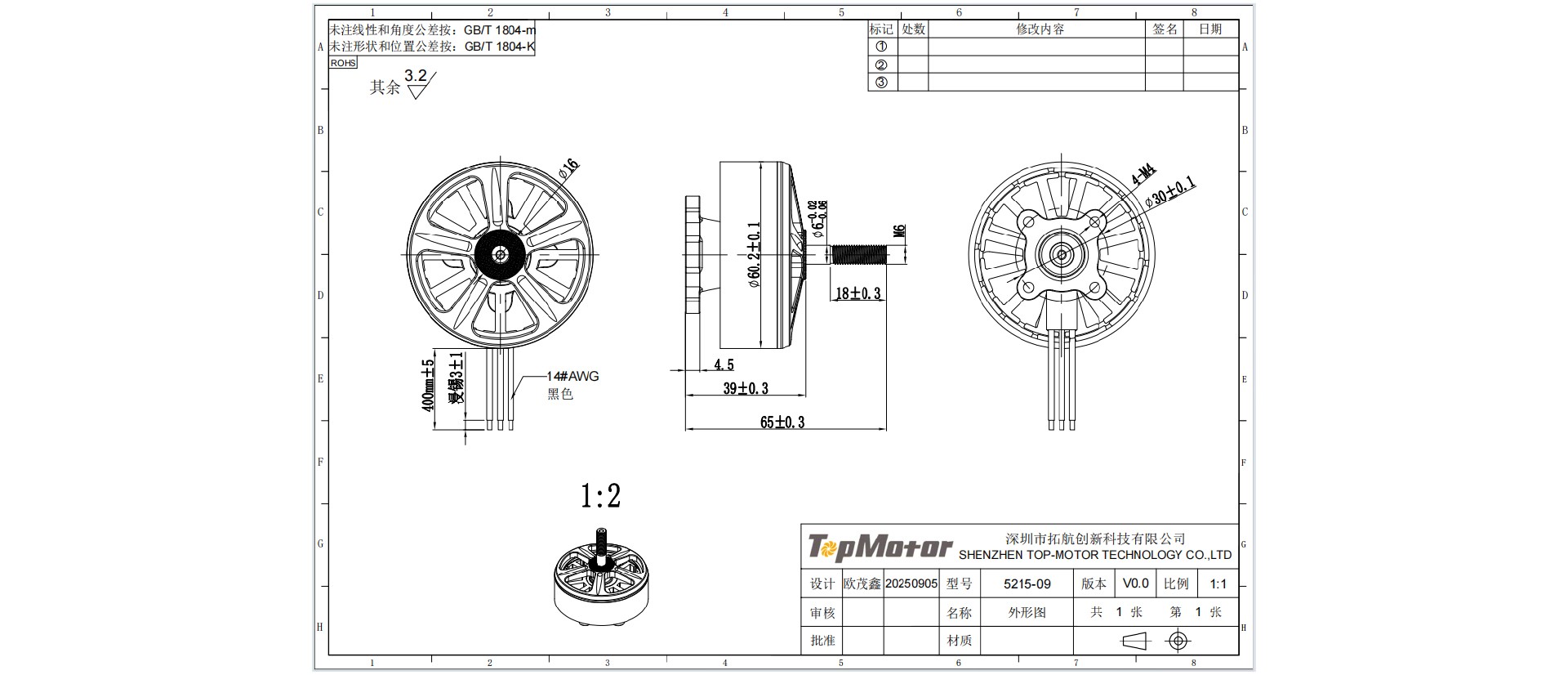

Outline Drawing

Basic Parameters

Model：5215
Motor Size：D60.2*39mm
Shaft-D：Ф6 -0.02/-0.06mm
Shaft-L：26±0.3mm
Wire Length：400±5mm
Weight：333.1±10g（With wire）

Technical Parameters

No Load Voltage：10V
No load Current：2.21±0.3A（440KV）/2.6±0.4A（500KV）
No load Speed：4189~4630RPM（440KV) 4750~5250RPM（500KV)
Internal resistance：24.27mΩ ±5% / 25.59mΩ ±5%
Working Voltage：8-12S（440KV），（3.7-4.2V/S） 8-12S（500KV），（3.7-4.2V/S）
KV Rating：440/500KV
Propeller：15/13inch
Max Thrust：7.8kg
Flight Weight：12kg

Testing Data

Model	Propeller	Throttle value(%)	Voltage (V)	Load current (A)	Thrust (g)	Power (W)	Efficiency (g/W)	Temperature (°C)
5215-09-500KV	1393	10%	31.98	0.62	125	19.8	6.3	78℃
		20%	31.95	1.39	272	44.3	6.12
		30%	31.93	3.89	747	124.3	6.01
		40%	31.87	9.65	1629	307.6	5.3
		50%	31.78	19.52	2662	620.3	4.29
		60%	31.63	34.03	3924	1076.4	3.65
		70%	31.44	54.45	5241	1711.6	3.06
		80%	31.19	81.02	6478	2526.6	2.56
		90%	30.94	106.68	7510	3300.3	2.28
		100%	30.94	105.72	7503	3270.7	2.29
5215-09-440KV	1507	10%	31.98	1.27	164	40.58	4.23	115℃
		20%	31.96	3.02	592	96.35	6.18
		30%	31.93	6.16	1262	196.53	6.43
		40%	31.85	13.73	2202	437.04	5.21
		50%	31.75	23.66	3338	751.09	4.49
		60%	31.61	39.43	4744	1246.35	3.79
		70%	31.43	57.75	5914	1814.7	3.29
		80%	31.16	87.39	7142	2722.38	2.64
		90%	30.71	130.43	7612	4005.91	1.91
		100%	30.61	139.16	7866	4259.34	1.85
