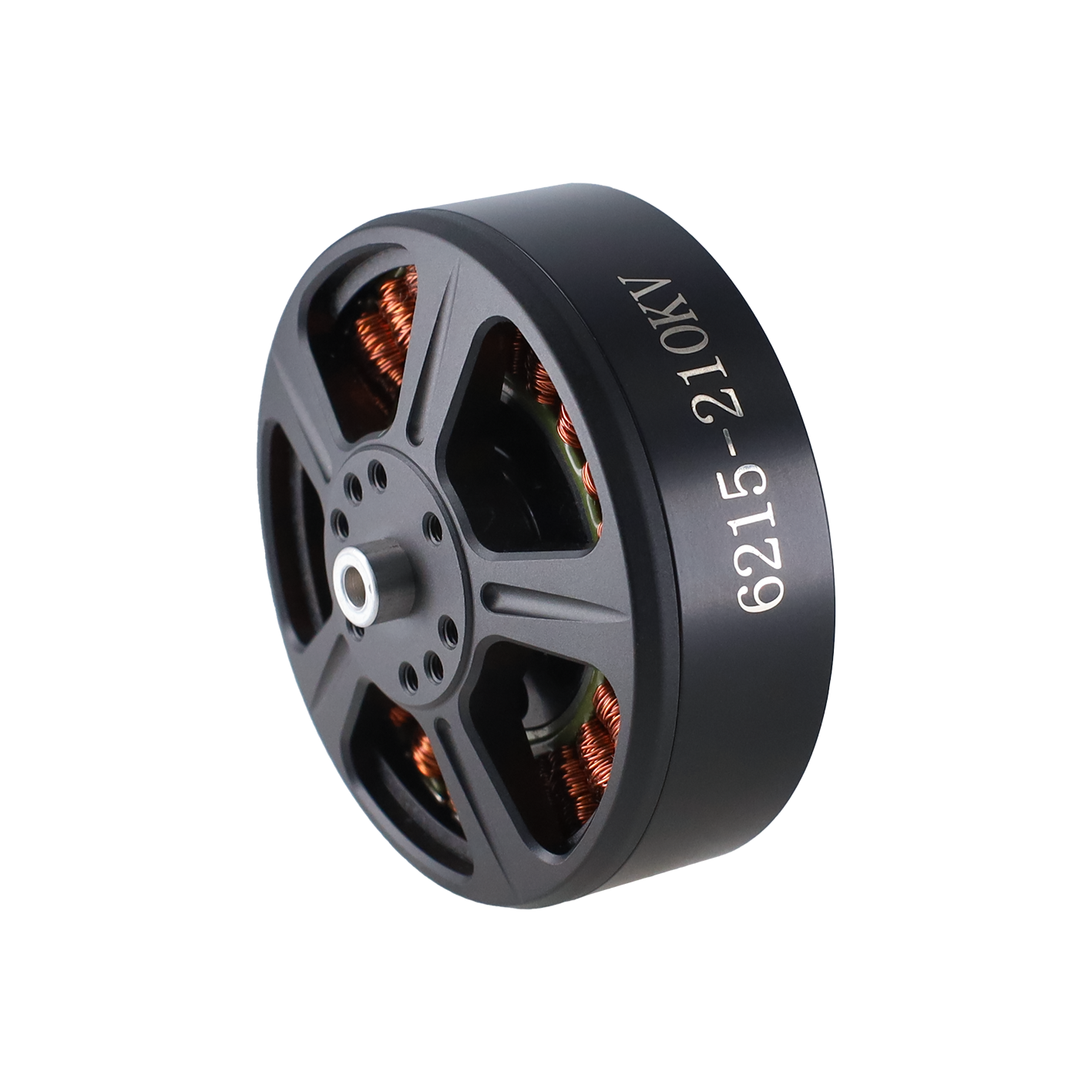

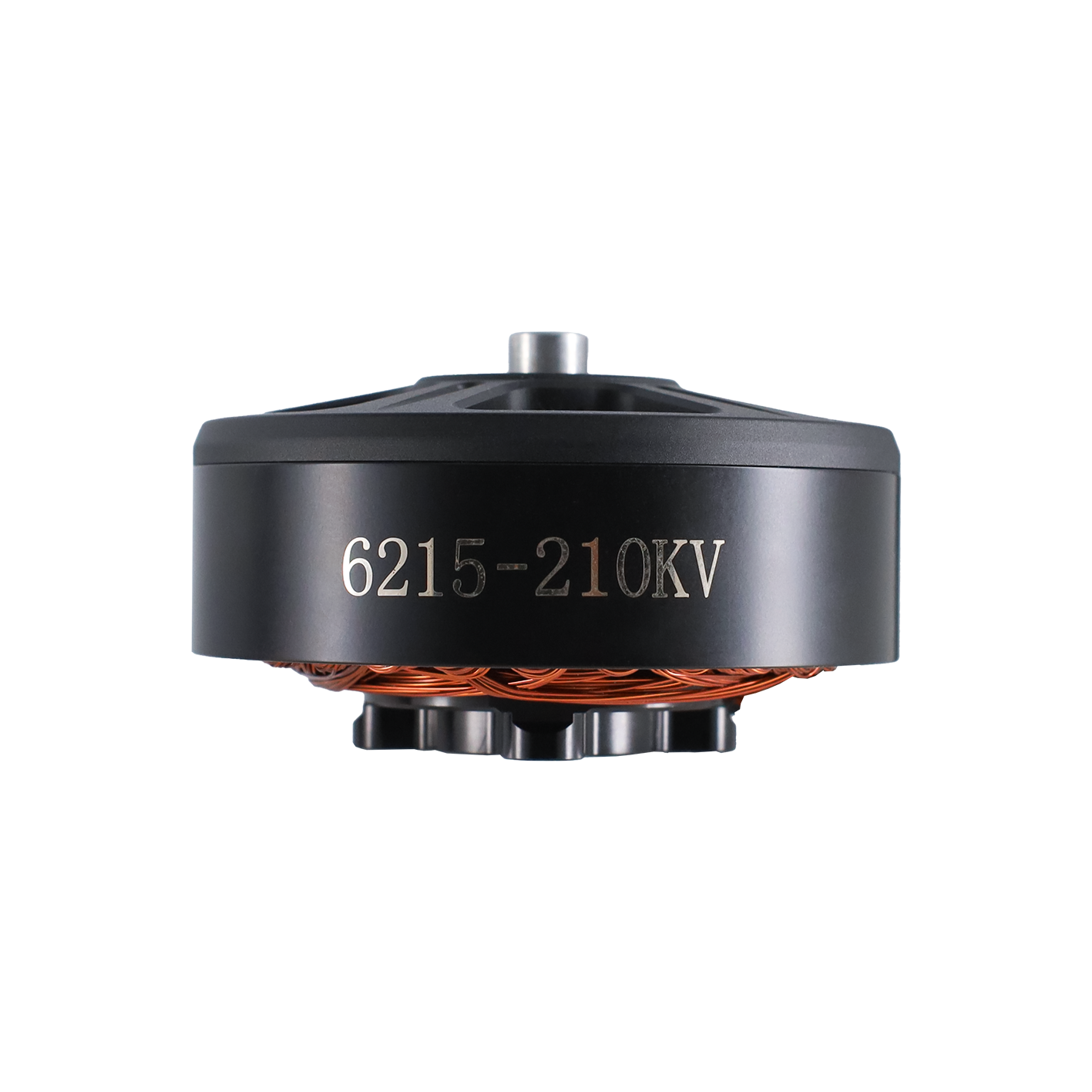

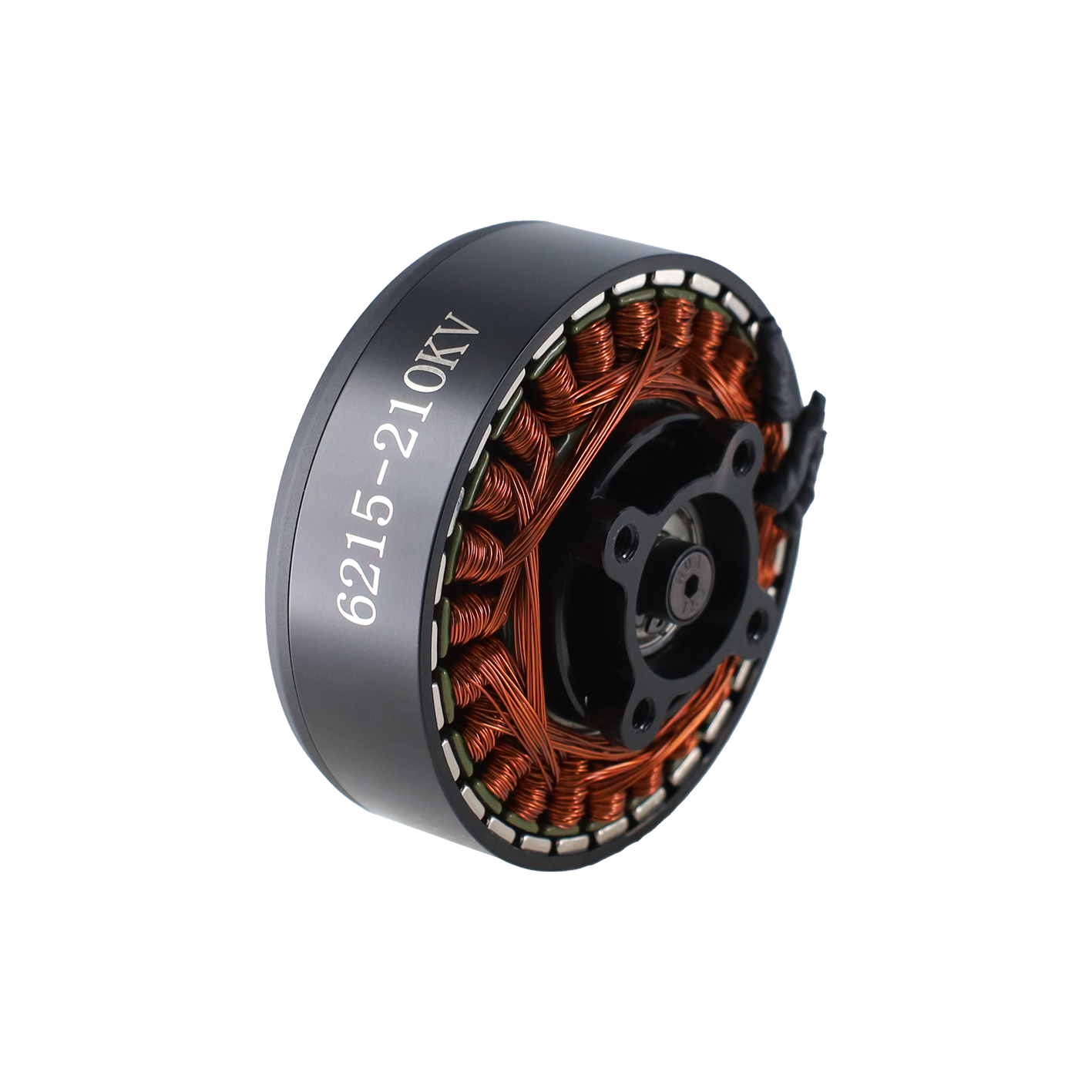

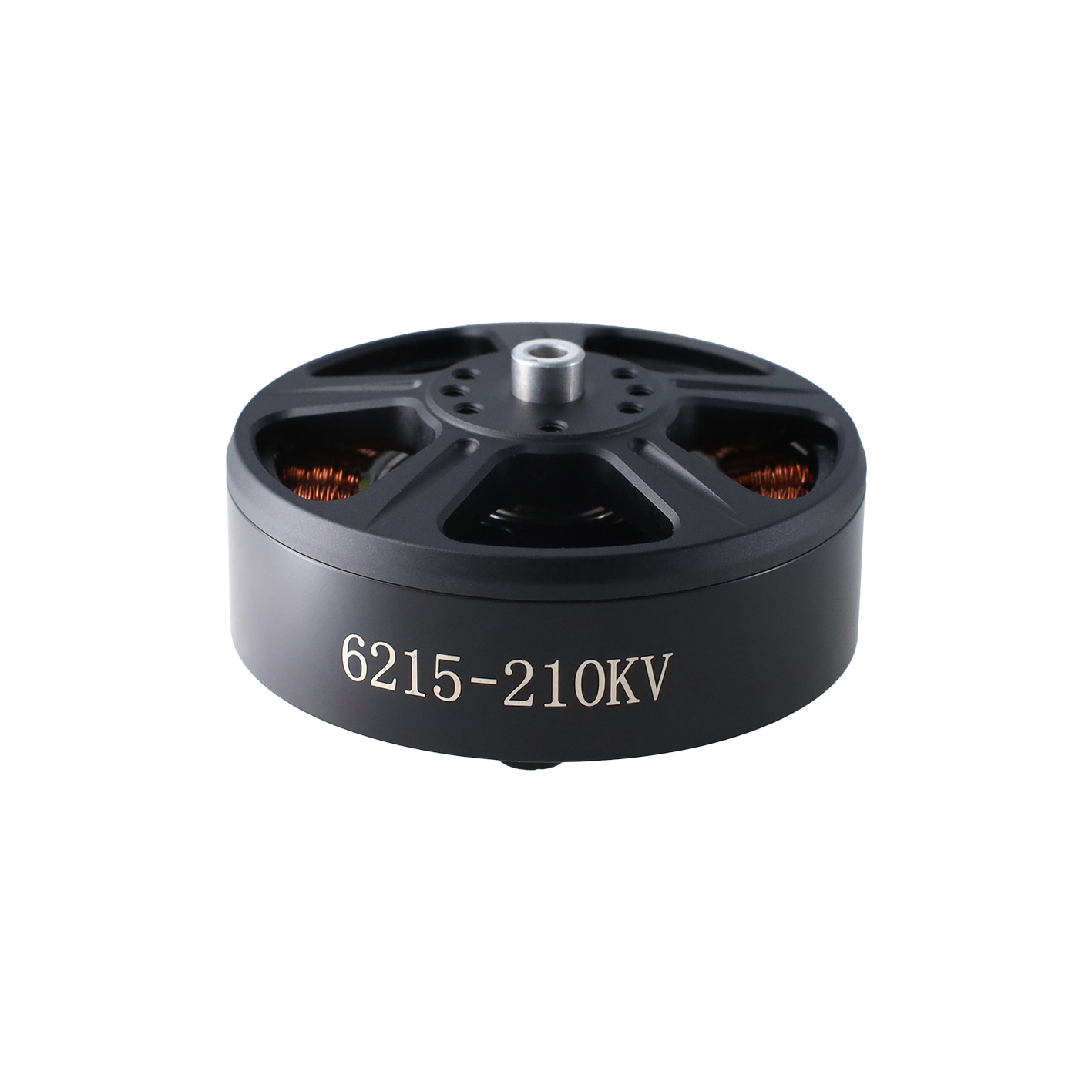

6215
  • Details
  • Specs
  • Download
  • Video
  • Details
  • Chat Now

网页版详情页 拷贝.jpg

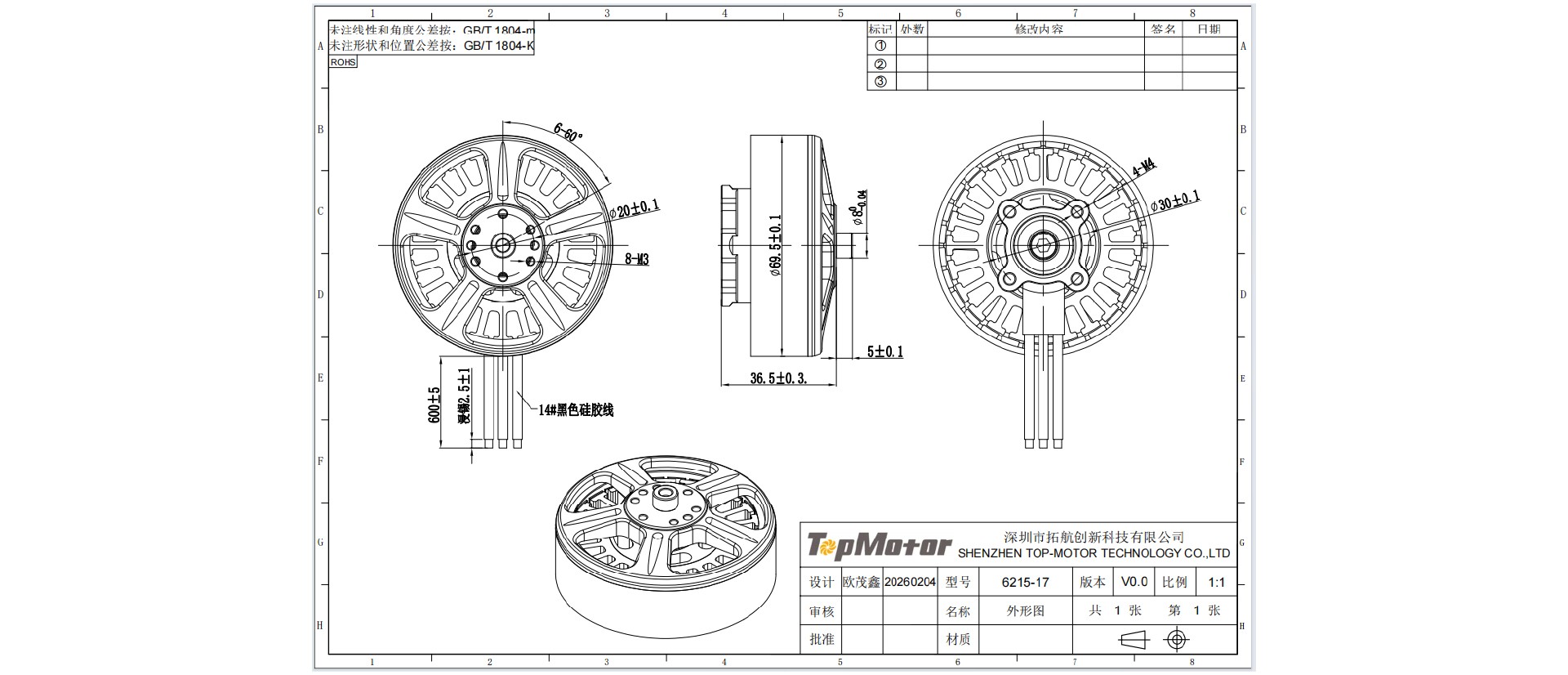

Outline Drawing
Basic Parameters
  • Model：6215
  • Motor Size：D69.5*36.5mm
  • Shaft-D：Ф8-0/-0.04mm
  • Shaft-L：5±0.1mm
  • Wire Length：600±5mm
  • Weight：388±10g（With wire）
Technical Parameters
  • No Load Voltage：20V
  • No load Current：1.59±0.2A
  • No load Speed：4028~4452RPM（210KV）
  • Internal resistance：46.66mΩ±5%
  • Working Voltage：12-14S（3.7-4.2V/S）
  • KV Rating：210KV
  • Propeller：18/19/20inch
  • Max Thrust：12kg
  • Flight Weight：18kg

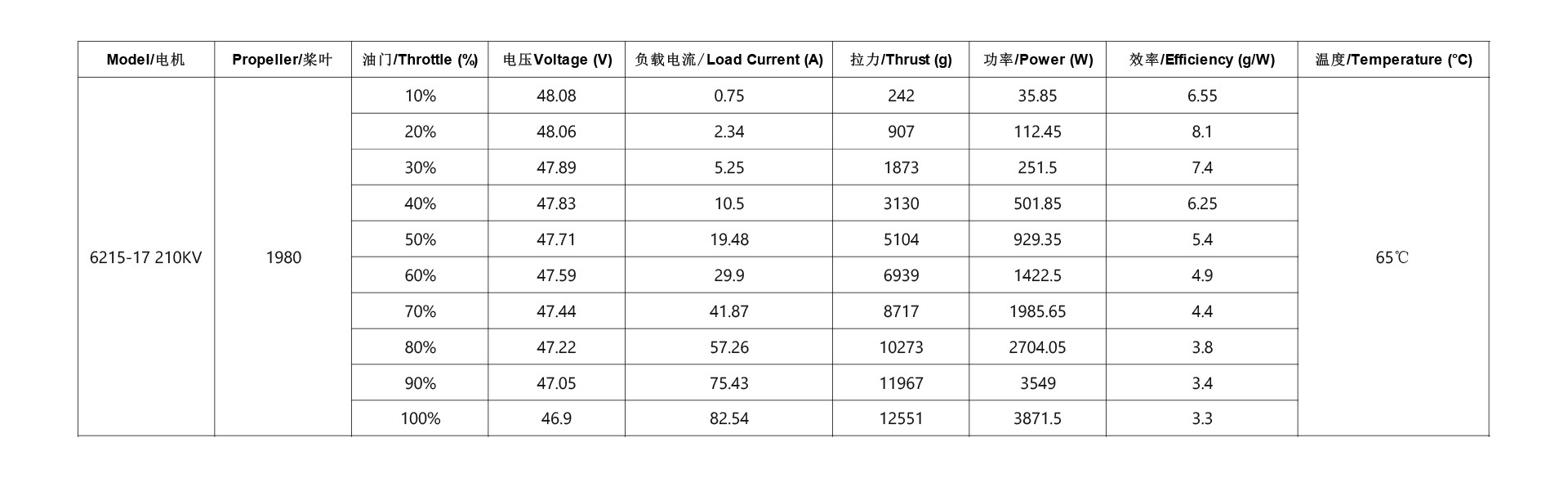

Testing Data
