4120
  • Details
  • Specs
  • Download
  • Video
  • Details
  • Chat Now

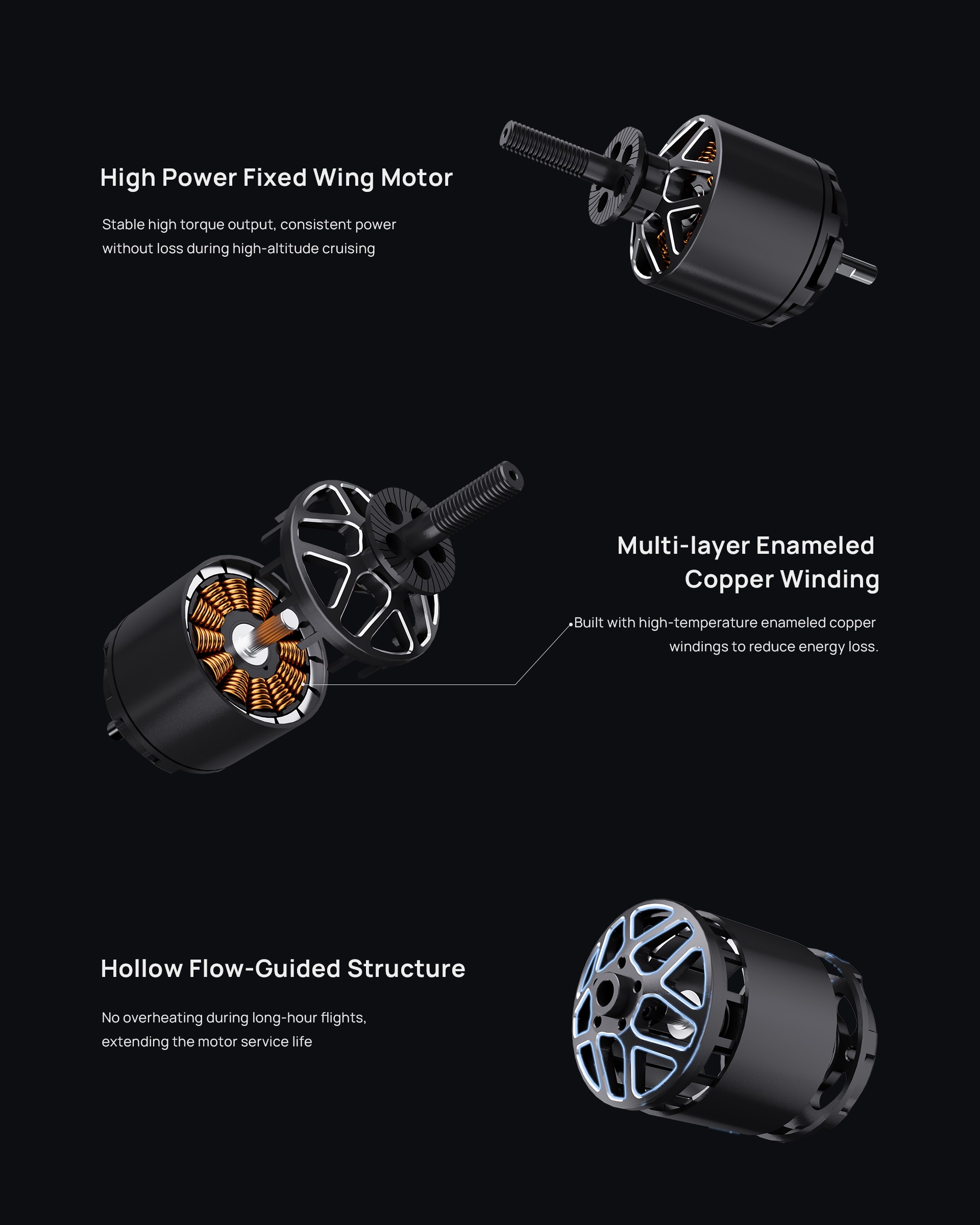

网页版详情-固定翼 拷贝.jpg

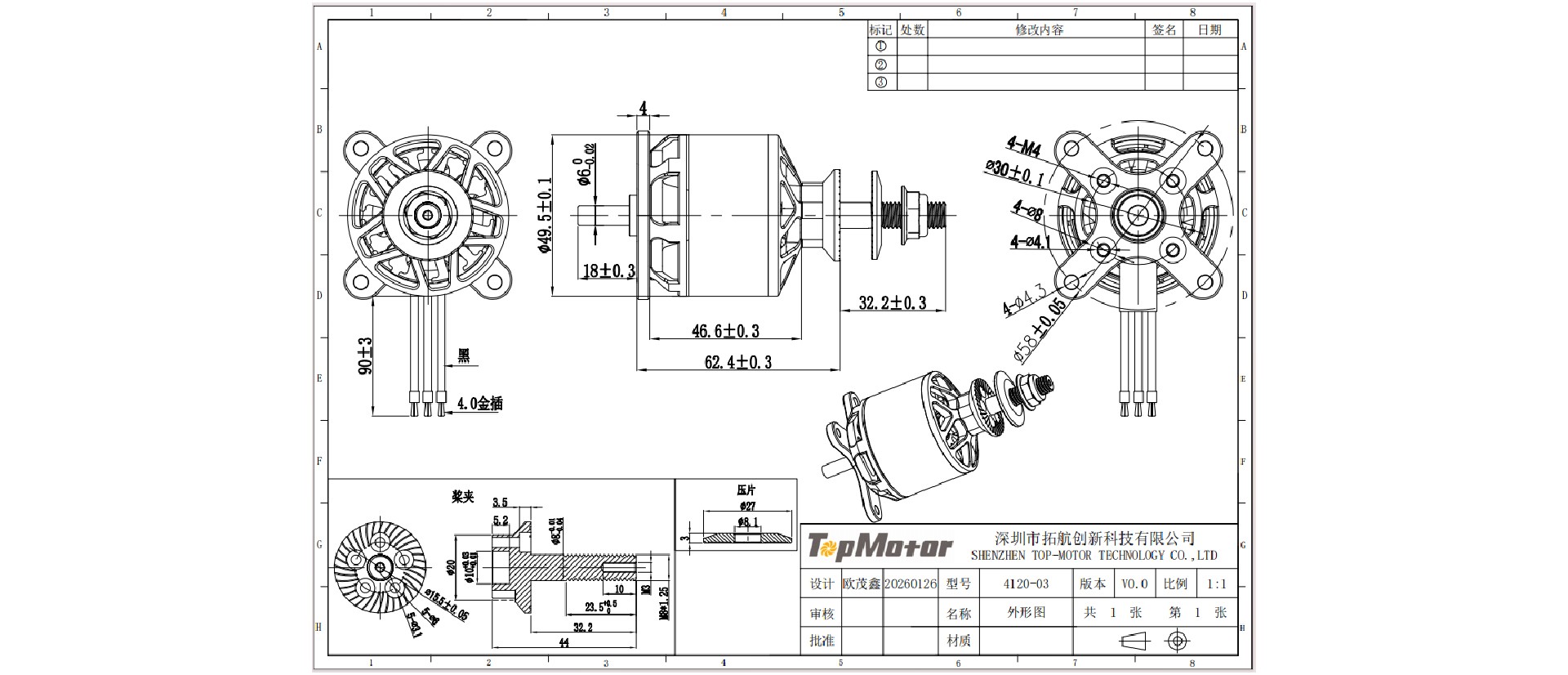

Outline Drawing
Basic Parameters
  • Model：4120
  • Motor Size：D49.5*46.6mm
  • Shaft-D：Ф6-0/-0.02mm
  • Shaft-L：18±0.3mm
  • Wire Length：90±3mm
  • Weight：294±10g（With wire）
Technical Parameters
  • No Load Voltage：20V
  • No load Current：3.8±0.4A
  • No load Speed：11590~12810RPM（610KV）
  • Internal resistance：13.7mΩ±5%
  • Working Voltage：6-8S（3.7-4.2V/S）
  • KV Rating：610KV
  • Propeller：14/15/16inch
  • Max Thrust：6kg
  • Flight Weight：3-4kg

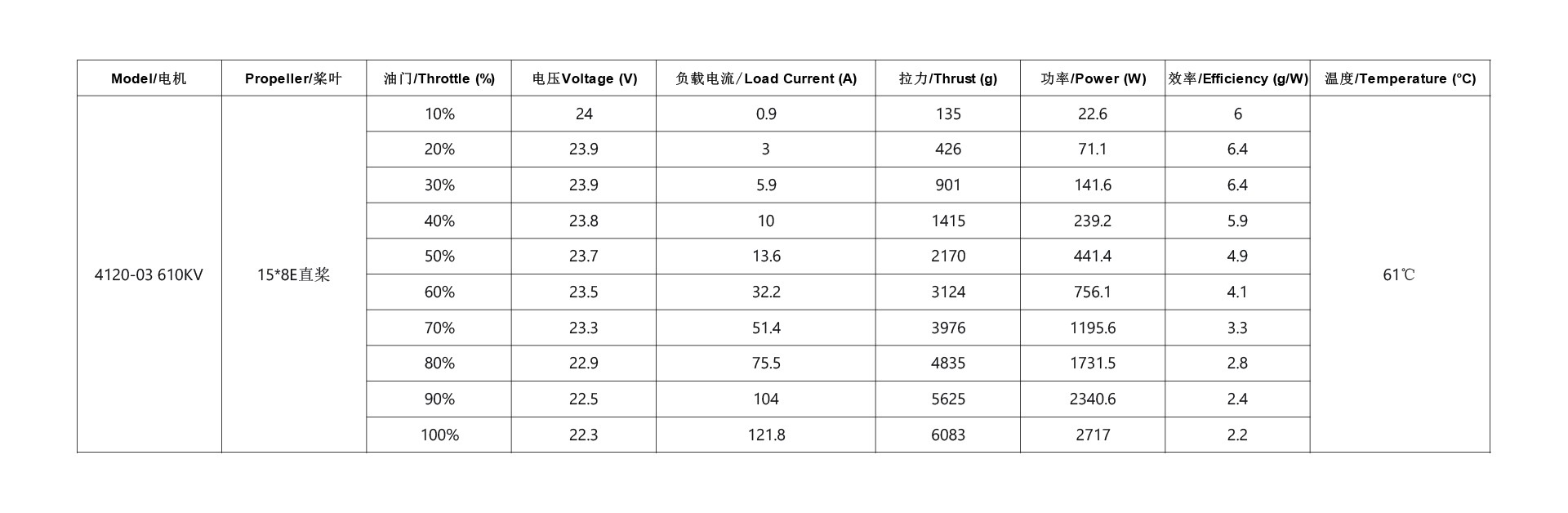

Testing Data
