4130
  • Details
  • Specs
  • Download
  • Video
  • Details
  • Chat Now

网页版详情-固定翼 拷贝.jpg

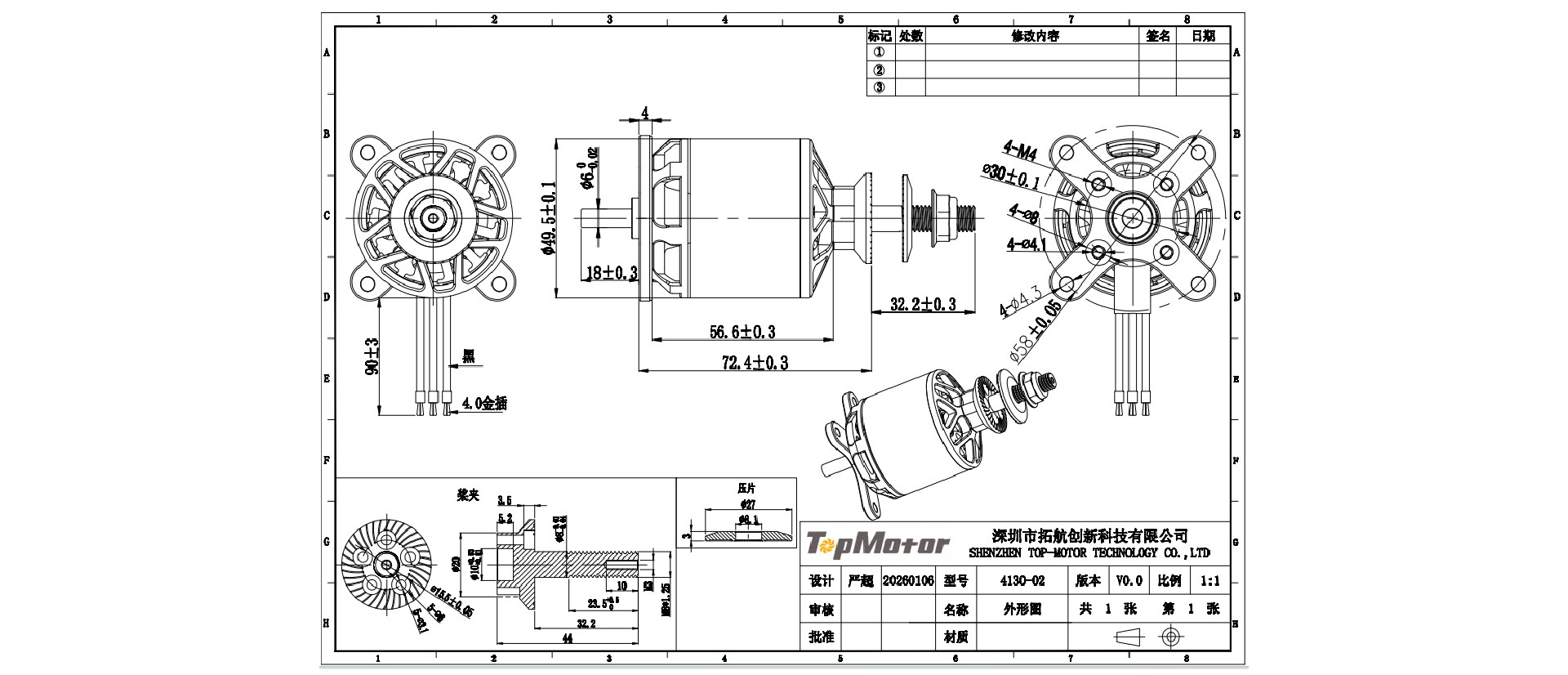

Outline Drawing
Basic Parameters
  • Model：4130
  • Motor Size：D49.5*56.6mm
  • Shaft-D：Ф6-0/-0.02mm
  • Shaft-L：18±0.3mm
  • Wire Length：90±3mm
  • Weight：403±12g（With wire）
Technical Parameters
  • No Load Voltage：20V
  • No load Current：3.8±0.3A
  • No load Speed：9690~10710RPM（510KV）
  • Internal resistance：11.37mΩ±5%
  • Working Voltage：6-8S（3.7-4.2V/S）
  • KV Rating：510KV
  • Propeller：16/17/18inch
  • Max Thrust：9kg
  • Flight Weight：5-6kg

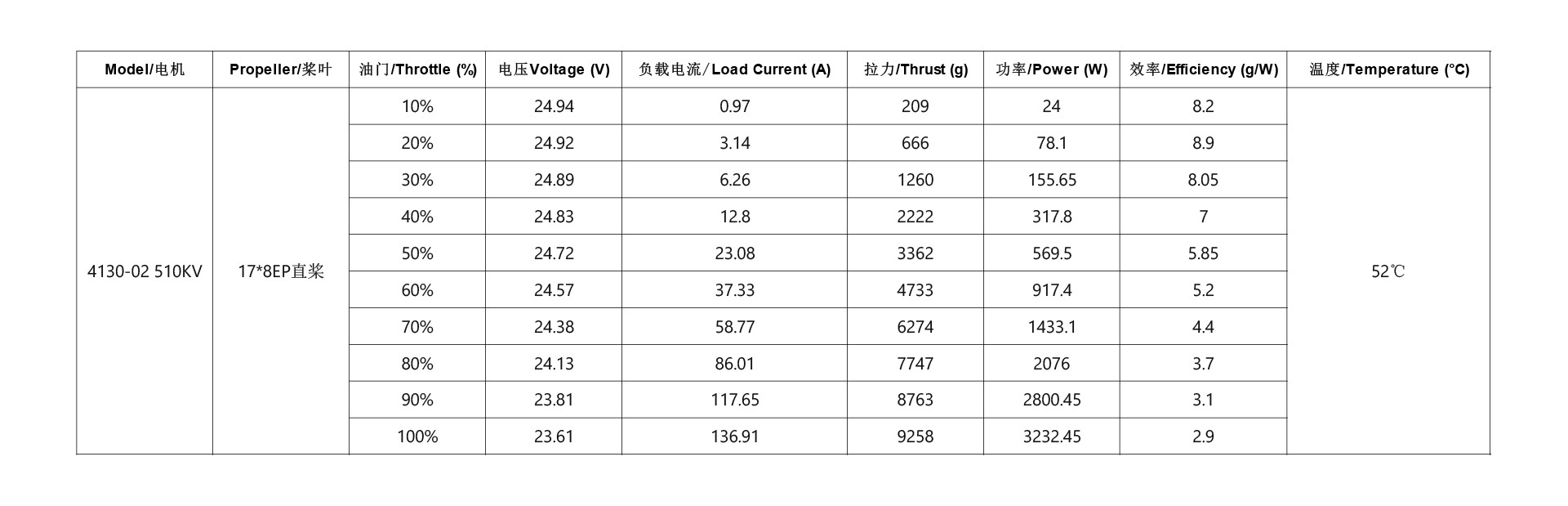

Testing Data
